A bonding jumper cable tray ensures electrical continuity across tray sections, fittings, and splices, meeting NEC 250.96 requirements. It provides a reliable path for fault currents, maintaining grounding and reducing the risk of electric shock or equipment damage. Commonly used in industries like manufacturing, data centers, and aviation, it ensures compliance with safety regulations. At GangLong Fiberglass, we offer high-quality fiberglass cable trays with excellent corrosion resistance and durability, designed to meet safety standards and enhance the reliability and safety of your electrical systems.
What is Bonding Jumper Cable Tray?
A bonding jumper cable tray is an essential component in electrical systems, designed to ensure safety by maintaining electrical continuity between metal structures and equipment. It directs fault currents, such as those from short circuits or lightning strikes, safely to the ground, preventing shock hazards. The system typically consists of metallic or non-metallic trays connected with bonding jumpers, which are conductive wires providing a low-resistance path for electrical current. This setup is critical in maintaining the safety and integrity of electrical installations.
Key Components of a Bonding Jumper Cable Tray System
A bonding jumper cable tray system includes key components such as the cable tray, bonding jumpers, grounding electrodes, and connectors. The cable tray supports and routes electrical cables, while bonding jumpers ensure electrical continuity between metal parts, creating a safe path to the ground. Grounding electrodes discharge fault currents into the earth, preventing shocks. Connectors secure the system’s components, maintaining effective electrical connections. Together, these components provide a reliable grounding system, minimizing electrical hazards and ensuring safety compliance in installations.
The Key of Bonding Jumper Cable Tray System Standards and Compliance
Compliance with electrical codes and standards is crucial for the safety and reliability of bonding jumper cable tray systems. These standards, set by organizations like NFPA and IEC, ensure that the system provides a low-resistance path for fault currents and that components like trays, jumpers, and connectors meet specific performance criteria. At GangLong Fiberglass, we ensure our bonding jumper cable tray systems comply with all relevant standards, offering customers reliable, safe, and compliant installations. Understanding these standards helps protect both people and property from electrical hazards.
Split HVAC Unit Mounted Cable Tray Installation Guide
The Importance of Proper Installation and Maintenance of Bonding Jumper Cable Tray
The proper installation and maintenance of bonding jumper cable tray systems are critical to ensuring their reliability, safety, and effectiveness in electrical installations. A correctly installed system provides a safe and reliable path for fault currents, minimizing the risk of electrical hazards. In contrast, improper installation can lead to serious safety risks such as electrical fires, equipment damage, and injury to personnel.
Installation Considerations
Proper installation of a bonding jumper cable tray system requires careful planning and attention to several important factors. These considerations ensure that the system performs as intended, safely managing fault currents and meeting regulatory standards.
Selecting the Right Cable Tray
Choosing the correct cable tray is crucial for accommodating the required cable size, type, and electrical load. The cable tray material should be chosen based on environmental conditions. For example, fiberglass is ideal for corrosive environments, while galvanized steel is more suitable for indoor settings. The tray must also be appropriately sized to ensure safe cable management and adequate space for air circulation, reducing the risk of overheating.
Route Planning and Layout
Route planning ensures the cable tray is installed efficiently and in compliance with safety codes. The path should be planned for easy access during maintenance and future upgrades. Trays must be secured to structural elements to prevent sagging or movement. Additionally, cables should remain accessible for inspections and repairs. Careful layout planning ensures proper grounding and bonding, supporting the system’s reliability and safety throughout its lifespan.
Installation of Bonding Jumpers
Bonding jumpers create an electrical connection between metallic parts of the cable tray and other components. These jumpers should be installed at key points, such as at junctions or where the tray connects with other metal equipment. Secure, corrosion-resistant connectors should be used to ensure a reliable connection. Proper sizing of the jumpers is crucial to handle fault currents without overheating or reducing system efficiency, ensuring consistent grounding across the entire installation.
Grounding Electrode Installation
Grounding electrodes provide a path for electrical fault currents to safely dissipate into the earth. These electrodes should be placed at a sufficient distance from the electrical system, ensuring effective grounding. The material of the electrodes, such as copper or copper-bonded steel, must be corrosion-resistant to maintain long-term effectiveness. Once installed, bonding jumpers should be connected securely to the electrodes to ensure a low-resistance path, facilitating safe discharge of fault currents and minimizing the risk of electrical hazards.
Ongoing Maintenance
Routine maintenance is essential to ensure the safe and efficient operation of a bonding jumper cable tray system. Regular cable tray inspection should focus on checking cables, connectors, and bonding jumpers for corrosion, wear, or damage. Over time, jumpers may degrade, and connectors might loosen, risking grounding continuity. Ensuring that these components are intact and functioning correctly will help prevent electrical faults. Maintenance should include cleaning and tightening connections to ensure the system remains safe and reliable.
Environmental Considerations
When a bonding jumper cable tray system is exposed to harsh environmental conditions, selecting the right materials is vital. Corrosion-resistant materials, such as galvanized steel or fiberglass, help extend the system’s lifespan and prevent premature degradation. In environments with high humidity, extreme temperatures, or chemicals, the system should be regularly inspected to ensure no damage has occurred. Frequent checks will help detect wear or corrosion early, preventing grounding failures and reducing the risk of electrical hazards.
Importance of Routine Testing
In addition to physical inspections, regular electrical testing should be conducted to ensure the grounding system remains effective. Testing the resistance of bonding components can confirm that the electrical path is uninterrupted. It helps verify that the system complies with safety standards, ensuring its effectiveness in fault conditions. Routine testing also provides an opportunity to detect potential issues before they result in failures, allowing for timely repairs and enhancing system reliability.

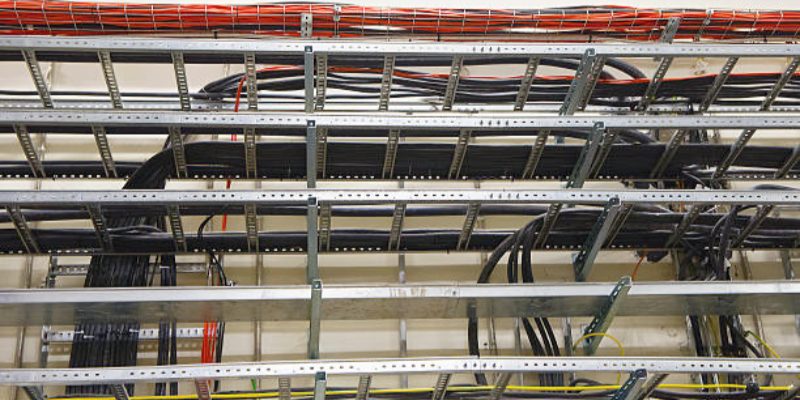

Key Advantages of a Bonding Jumper Cable Tray System
A Bonding Jumper Cable Tray System is a vital component of safe and efficient electrical infrastructure. It offers several critical advantages that enhance system safety, reliability, and compliance across a wide range of applications.
Improved Safety
A bonding jumper cable tray system improves safety by grounding all metal parts, allowing fault currents from short circuits or lightning to safely dissipate. This reduces the risk of electric shock and fire. It also helps prevent voltage differences between conductive components, which could otherwise pose safety hazards. In critical environments, the system provides a reliable backup in case of grounding failures, ensuring personnel and equipment are protected at all times.
Enhanced Electrical Performance
Bonding jumper cable trays create a continuous conductive path, improving the stability of electrical systems. They help reduce electrical noise, voltage drops, and electromagnetic interference. This is important in settings like hospitals and data centers, where power quality directly affects performance. The consistent grounding also enhances the effectiveness of surge protection devices, reducing the risk of equipment damage from transient voltages and ensuring long-term operational efficiency and reliability.
Regulatory Compliance
These systems help meet electrical codes such as the NEC and IEC, which mandate proper bonding and grounding of conductive parts. Complying with these standards reduces the risk of penalties, failed inspections, or insurance issues. It also demonstrates a commitment to workplace safety. Installing a compliant bonding jumper for cable tray system ensures that businesses meet regulatory expectations, reducing legal risks and supporting operational approvals for commercial, industrial, and institutional facilities.
Operational Continuity and Cost Savings
Bonding jumper cable tray systems minimize downtime by protecting electrical infrastructure from transient faults. This is critical for industries that depend on continuous power, such as manufacturing and healthcare. Preventing equipment damage reduces repair costs, while stable operation leads to fewer production delays. Over time, businesses benefit from lower maintenance expenses and longer equipment lifespan, making these systems a smart investment in both safety and cost-efficiency.
Simplified Maintenance and Troubleshooting
A continuous bonding system simplifies maintenance by making fault detection and resolution more straightforward. It provides predictable grounding points, helping technicians quickly locate voltage irregularities or grounding issues. This saves time during routine inspections or emergency repairs, especially in complex installations. By streamlining diagnostics and reducing repair delays, the system contributes to higher uptime and better resource management across large-scale electrical networks.
Snake Cable Tray Solar Ground Mount: Key Benefits and Features
Practical Applications of Bonding Jumper Cable Tray
Bonding jumper cable tray systems play a critical role in ensuring electrical safety, grounding continuity, and system reliability in a wide range of settings. From industrial plants to residential buildings, these systems support safe electrical operations wherever metallic cable trays are used to route power or communication cables.
Industry
In industrial environments, bonding jumper cable tray systems are essential due to the presence of high-power equipment, extensive wiring networks, and the potential for harsh conditions. Facilities such as manufacturing plants, processing plants, oil refineries, and chemical plants rely on these systems to ensure that all conductive components are electrically bonded. This helps protect workers from electric shock, minimizes fire hazards, and prevents equipment damage from electrical faults. In such settings, bonding jumper trays are also crucial for ensuring compliance with strict industrial safety standards and inspection requirements.
Commercial Building
Commercial spaces like office buildings, malls, hospitals, airports, and hotels require reliable and organized cable management systems. Bonding jumper cable trays support power, lighting, communication, and HVAC systems while also providing a continuous grounding path. This helps prevent system disruptions caused by electrical noise or ground faults. Additionally, these systems support operational efficiency by simplifying cable maintenance, improving safety, and ensuring all metal infrastructure is properly bonded to meet building and electrical codes.
Data Center
In data centers, where uptime and equipment protection are mission-critical, bonding jumper cable tray systems are used to ensure the integrity of electrical and data communication networks. These trays help mitigate electromagnetic interference and ensure consistent grounding across racks, cabinets, and cable paths. They play a vital role in protecting servers and storage systems from static discharge, surges, or fault currents. Proper grounding also supports the function of backup power systems and uninterrupted power supplies (UPS), making the system more resilient.
Power Generation and Utility
Power plants, substations, and renewable energy installations (such as wind farms and solar farms) use bonding jumper cable tray systems to maintain grounding integrity across vast cable networks. These systems help manage large fault currents safely and ensure compliance with utility-grade grounding standards. By providing a reliable grounding system, bonding trays help prevent grid disruptions, protect infrastructure, and enhance maintenance safety for utility workers.
Residential
Though less common in single-family homes, bonding jumper cable trays are used in larger residential developments, apartment complexes, and smart home systems where centralized wiring is involved. These trays provide grounding for lighting, appliances, and home automation systems. Even in smaller installations, proper bonding helps reduce the risk of electric shock or fires by ensuring that any fault current is safely directed to ground.
Transportation and Infrastructure
Large infrastructure projects—such as tunnels, airports, rail systems, and bridges—often rely on bonding jumper cable tray systems to protect the electrical systems involved in lighting, signaling, communications, and power distribution. In these public safety-critical environments, effective grounding helps ensure operational continuity, passenger safety, and regulatory compliance.

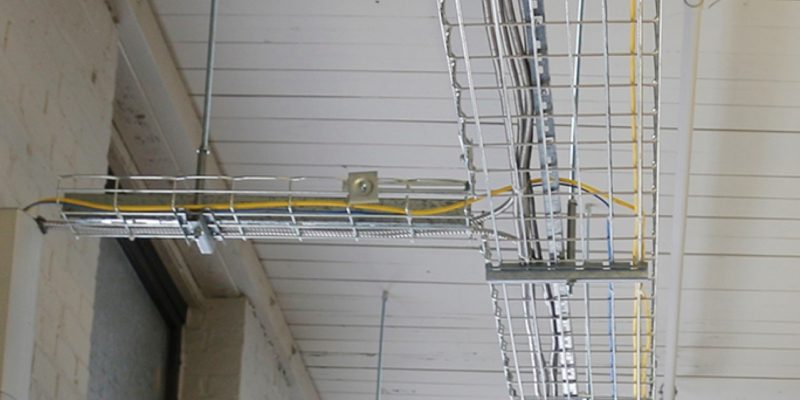

How Bonding Jumper Cable Tray Systems Enhance Electrical Safety
A bonding jumper cable tray is vital in electrical systems, ensuring safety by providing a reliable grounding path. It directs fault currents to the ground, preventing electric shocks, fire, and equipment damage. In installations with interconnected metal components, such as trays, panels, and machinery, the system maintains electrical continuity. This reduces the risk of dangerous voltage differences and ensures the entire electrical system functions safely, protecting both people and equipment from potential hazards.
Ensuring Electrical Continuity and Safety
In systems with multiple metallic components, the bonding jumper cable tray ensures all parts remain at the same electrical potential. This electrical continuity eliminates voltage differences, reducing the risk of shocks or arcing. The tray system links components like cable trays, panels, and machinery, directing fault currents safely to the ground in case of a fault. This minimizes risks to personnel and equipment, ensuring that electrical failures do not cause unsafe conditions such as electrical surges or fire.
Essential Components of Bonding Jumper Cable Tray Systems
Bonding jumper cable tray systems use conductive jumpers, typically made of copper, to create an effective grounding path. Copper is commonly chosen due to its high conductivity and resistance to corrosion, ensuring durability. These jumpers connect various metallic components in the system, maintaining equal electrical potential across the installation. Proper installation of jumpers ensures no dangerous voltage differences, preventing arcing or electrical faults. The tray system’s components work together to ensure safety and reliable electrical performance.
Role in Safeguarding Electrical Installations
The bonding jumper cable tray system plays a key role in ensuring electrical safety in all types of installations. By providing a consistent path for fault currents, it prevents electrical hazards like fires, shocks, and equipment damage. The system is crucial in environments with high voltages or sensitive equipment, such as data centers or hospitals. Proper installation and maintenance of the tray system ensure compliance with safety codes and reduce the risk of costly damage or operational downtime due to electrical issues.
Mounting Plate Cable Carrier Tray Installation Guidelines
FAQs about Bonding Jumper Cable Tray
Yes, a cable tray typically needs to be bonded to ensure electrical safety and compliance with industry standards. Bonding involves connecting metallic components to establish a continuous conductive path. This prevents potential differences that can cause electric shock or equipment damage. According to the National Electric Code (NEC), metallic cable trays must be bonded if they serve as an equipment grounding conductor or contain cables requiring bonding. Bonding protects against faults by directing excess current to the grounding system. Proper bonding also ensures that the cable tray system complies with regulations and reduces risks associated with electrical surges or lightning strikes. Regular inspections and adherence to code requirements are crucial for safe bonding practices.
A bonding jumper cable is a conductor used to create an electrical connection between two metallic components, ensuring a continuous path for fault current. Bonding jumpers are essential for maintaining electrical safety, especially in systems like cable trays or raceways. They connect different sections of a metallic cable tray system or link the tray to an equipment grounding conductor. Bonding jumper cables are typically made of copper or aluminum and must meet specific size and material standards outlined in the NEC. These cables are crucial in fault scenarios, providing a low-resistance path to ground and reducing the risk of electrical hazards. Regular inspection ensures their reliability and compliance.
Yes, cable trays must be grounded to ensure safety and regulatory compliance. Grounding provides a low-resistance path for fault currents, preventing electric shock and protecting connected equipment. Metallic cable trays are required to be grounded, particularly when used as an equipment grounding conductor or supporting cables that require grounding. The NEC provides guidelines on how cable trays should be grounded, including the use of bonding jumpers or dedicated grounding conductors. Grounding also helps dissipate static charges that may accumulate on the tray, reducing risks in sensitive environments like data centers. Proper grounding practices ensure the tray system’s functionality and safety.
