Cable Tray Installation Cost per Meter – Price Estimator

Cable tray installation cost per meter varies by specifications; GangLong Fiberglass offers kits for raised floor system and facility needs. Cable trays are vital in electrical installations, providing secure pathways for power, communication, and control cables across residential, commercial, and industrial settings. Understanding the cable tray installation cost per meter is essential for effective budget planning. Costs vary based on tray material (steel, aluminum, or fiberglass), size, design (ladder or solid bottom), and installation complexity. Additional elements like supports, connectors, and brackets also impact pricing. Accurate cost estimation helps avoid unexpected expenses, especially in large-scale projects, ensuring financial control and installation quality. Whether for a small office or large facility, knowing the cost breakdown per meter helps optimize investment and supports efficient, durable, and maintainable cable management systems.

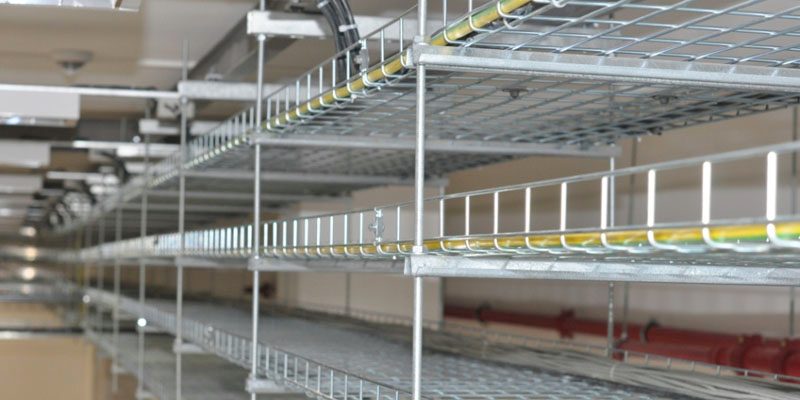

Factors Influencing Cable Tray Installation Cost Per Meter

When evaluating the cable tray installation cost per meter, several critical factors need to be considered. These factors not only affect the initial purchase price but also influence the overall installation cost, including labor, accessories, and long-term maintenance. The most important factors include the material choice, type of tray, size and dimensions, and any additional features that may be required for specific installation environments. Using a Price Estimator can help project planners quickly assess how these variables impact total costs and make more informed budgeting decisions.

Material

The material used for the cable tray system is one of the primary determinants of its cost. Different materials vary in strength, durability, resistance to environmental factors, and overall price.

Steel Cable Trays

Steel is the most widely used cable tray material due to its balance of cost-effectiveness and strength. Steel trays typically cost between $5 to $25 per meter. They are strong, durable, and widely available, making them ideal for general-purpose electrical installations in residential, commercial, and industrial settings. Steel trays provide an excellent balance between affordability and performance and are commonly used in environments where environmental exposure is limited.

Aluminum Cable Trays

Aluminum trays are lightweight and resistant to corrosion, making them an ideal choice for installations in humid, salty, or chemically harsh environments. Due to the material’s superior resistance to rust and its lightweight properties, Aluminium Cable Tray tend to be more expensive than steel, typically ranging from $6 to $30 per meter. Aluminum trays are commonly used in outdoor installations, particularly in coastal or industrial areas where corrosion resistance is paramount.

Fiberglass Reinforced Plastic (FRP)

These trays are designed for environments where high corrosion resistance and durability are required, such as in chemical plants, wastewater treatment facilities, and offshore applications. The price of FRP trays can range from $10 to $50 per meter, depending on the specifications such as size, design, and environmental factors. While more expensive, FRP trays offer long-term benefits, particularly in aggressive environments where other materials may fail.

Stainless Steel

Stainless steel trays are considered the most durable and corrosion-resistant, making them ideal for high-demand environments. They are particularly useful in industries that require trays that can withstand extreme conditions, such as heavy-duty manufacturing, pharmaceuticals, or oil & gas sectors. However, stainless steel is also the most expensive material, with prices often ranging from $20 to $100 per meter. Despite the high upfront cost, the exceptional longevity of stainless steel makes it a wise investment for certain applications where failure would have severe consequences.

Type of Cable Tray

The type of tray chosen for the project will have a significant impact on the overall cable tray installation cost per meter. The two primary types of cable trays are ladder trays and solid bottom trays, and the choice between them depends on the specific needs of the project, including the number of cables, accessibility requirements, and environmental conditions.

• Ladder Tray: Ladder trays are often the more economical option, especially for large-scale installations. They feature an open design that allows for easy cable access, ventilation, and flexibility in cable management. These trays are ideal for installations with a high density of cables, particularly in commercial or industrial settings where cables need to be added or removed regularly. The ladder tray’s open design reduces costs as it requires less material to construct compared to solid bottom trays. While ladder trays are generally more affordable, they may not offer the same level of protection for the cables as solid bottom trays.
• Solid Bottom Tray: Solid bottom trays offer a more enclosed design and are typically used in environments where extra protection for the cables is needed. They provide better protection against dust, debris, and environmental hazards. Solid bottom trays tend to be more expensive than ladder trays due to the additional material required for construction and the enhanced protection they offer. They are commonly used in critical installations such as hospitals, data centers, and clean rooms, where cables must be shielded from contaminants or external impacts. The cost of solid bottom trays can vary depending on the material and design, but they generally add a higher cost to the overall installation.

Size and Dimensions

The size and dimensions of the cable tray system also play a crucial role in determining the cost per meter. Larger trays are needed when more cables must be routed, and this increases the cost of both the materials and the installation.

• Width: The width of the tray is a key factor in determining its capacity. A wider tray can accommodate more cables, but this also increases the material cost, as wider trays require more metal or fiberglass. The wider the tray, the higher the cost, particularly for materials like aluminum or stainless steel.
• Depth: The depth of the tray determines how many cables can be stacked in layers. Deeper trays are typically used in applications where a large volume of cables needs to be routed together. These trays are generally more expensive due to the increased material usage and the need for more robust support structures. In the case of stacked cable trays, the depth plays a crucial role in optimizing the vertical space available for cable management. By stacking cables in multiple layers, these trays allow for more efficient use of limited space, especially in environments where horizontal space is constrained.

How to Set Cable Tray: A Complete Guide

Additional Considerations in Cable Tray Installation Cost Per Meter

Finish and Coatings

The finish and coatings applied to cable trays play a significant role in determining the overall cable tray installation cost per meter. Special finishes, such as galvanized steel or powder coatings, improve the durability and aesthetics of the trays but can increase the installation cost. These coatings offer additional protection, which can be critical in specific environmental conditions.

• Galvanized Steel Trays:
  Galvanizing is a process that coats the steel trays with a layer of zinc to protect them from corrosion. While galvanized trays are more expensive than standard steel, they provide exceptional resistance to rust and degradation, making them ideal for outdoor or industrial environments where trays may be exposed to harsh weather conditions or chemicals. The additional cost for galvanized trays can range between 15-30% more than standard trays, depending on the tray’s size and the galvanization process used.
• Powder Coatings:
  Powder-coated cable trays are commonly used for their aesthetic appeal and enhanced durability. The process involves applying dry powder to the tray and heating it to create a solid, protective layer. This finish offers strong resistance to corrosion, UV exposure, moisture, and extreme temperatures. Ideal for public or commercial spaces where appearance matters, powder coating increases installation costs by about 15–20%. However, the added expense is often justified by the extended lifespan and low maintenance of the trays in harsh environments.

Location and Market Conditions

Location plays a crucial role in determining the cable tray installation cost per meter. Prices for materials and labor can vary significantly depending on the geographical location and local market conditions. Several factors come into play:

• Material Costs:
  The price of raw materials, such as steel, aluminum, or fiberglass, can fluctuate depending on the region. Areas that are closer to manufacturing hubs may experience lower material costs due to reduced shipping fees. However, in remote or less accessible regions, material costs may increase due to transportation expenses or limited local supply.
• Labor Rates:
  Labor costs for cable tray installation can also vary by location. In regions with a higher cost of living or in urban areas, labor rates for skilled tradesmen or contractors may be more expensive, which can increase the overall installation cost. Conversely, in regions with lower labor costs or less demand for specialized electrical installations, prices may be more affordable.
• Market Demand and Supply:
  Areas with higher demand for cable trays (such as large cities or industrial zones) may see increased prices due to limited supply or greater competition for skilled labor. On the other hand, rural areas or regions with fewer commercial and industrial projects may experience lower demand and thus lower prices for materials and installation services. For example, coastal areas with high humidity or salinity may require more corrosion-resistant materials like stainless steel or galvanized trays, which will increase material costs.
• Taxes and Regulations:
  Local taxes, import tariffs, and building regulations can also affect the cost of cable tray installation. Some regions may impose additional charges on imported goods, affecting material prices. Furthermore, specific local codes or regulations may require more stringent installation procedures or the use of more expensive materials, thus influencing the overall cable tray installation cost per meter.

Accessories and Support Materials

In addition to the trays themselves, various accessories and support materials are necessary to complete a proper cable tray installation, and these can also contribute to the cable tray installation cost per meter. The cost of accessories can vary depending on the complexity of the installation and the specific requirements of the project.

• Additional Supports:
  Cable trays need to be properly supported at regular intervals to ensure their stability and safety. Supports such as brackets, hangers, or pedestals are required to maintain the correct positioning of the trays, especially when installing trays over large distances or in challenging environments. Depending on the design and material used, supports can add an extra 5-10% to the installation cost per meter.
• Cable Ties and Fasteners:
  Cable ties, clamps, and fasteners are essential for securing cables within the tray and preventing them from shifting or causing damage during operation. The cost for these components is generally low but can add up over large installations. These accessories are crucial to ensure the proper management and organization of cables, as well as to maintain compliance with safety standards.
• Custom Fittings:
  Some installations may require custom fittings such as elbows, tee fittings, connectors, or end caps to adapt the cable tray system to the specific layout of the building or facility. Custom fittings are more expensive than standard connectors and may increase the overall cost of the project by 10-15%.

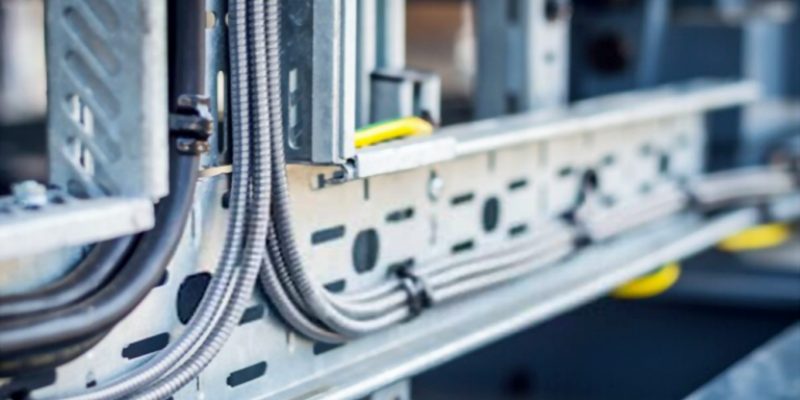

Cost Per Foot: Cable Tray Installation Cost Per Meter in Foot Units

Conversion from Meters to Feet

While cable tray installation costs are often quoted in meters, many projects require cost calculations based on feet. This is especially true for projects located in countries where the imperial system is used, or when the project’s overall dimensions are measured in feet rather than meters. To convert the cable tray installation cost per meter into cost per foot, simply divide the per-meter price by 3.281 (the number of feet in a meter).

For example:

• If a steel cable tray costs $5 per meter, the cost per foot would be approximately $1.50.
• If a steel tray costs $25 per meter, the cost per foot would be about $7.62.

Steel trays typically cost between $1.50 and $8 per foot depending on factors such as the material type, tray size, and other specifications. This range reflects the price per foot for basic steel trays, with higher-end options (such as those made from materials like stainless steel or trays with special coatings) pushing the price towards the higher end of this range.

Factors Affecting Cost Per Foot

While the conversion from meters to feet is straightforward, several factors can influence the cost per foot of cable tray installation, making it important to consider all variables when budgeting for a project.

Regional Variations

Regional market conditions play a significant role in determining the cost per foot for cable tray installation. Areas with a higher cost of living or increased labor costs, such as major metropolitan cities, will generally experience higher installation prices. On the other hand, regions with lower living costs or areas with less demand for cable tray installation services (e.g., rural or less urbanized areas) may offer more affordable rates. For instance, the cost per foot might be higher in cities like New York or Los Angeles due to higher labor costs and operational expenses, while it may be relatively lower in smaller towns or rural areas where demand is not as high.

Installation Complexities

The complexity of the installation process can also have a significant impact on the cost per foot of cable tray installation. Projects that require high ceiling heights, difficult access, or complex routing will result in higher costs. For example, if the installation requires cable trays to be mounted at great heights or in confined spaces (such as industrial warehouses, multi-story buildings, or facilities with challenging layouts), the labor costs for installation will increase. Workers may need specialized equipment like lifts, scaffolding, or rigging to safely install the trays, which adds to the overall cost. Additionally, any complex bends, turns, or integration with other electrical systems will also increase the cost per foot.

Tray Design

The specific design of the cable tray also affects the per-foot installation cost. Ladder trays, for example, tend to be cheaper per foot because they are simpler to install and provide easy access for maintenance. In contrast, solid-bottom trays, which offer additional protection for cables but are more difficult to work with, will increase the installation cost per foot. Similarly, trays with extra features such as protective coatings, extra supports, or custom fittings will add to the per-foot price.

Labor and Equipment

The amount of labor required for the installation, as well as any equipment needed for specialized tasks, directly affects the cost per foot. If the installation site requires more advanced machinery or a larger crew, the per-foot cost will rise accordingly. For instance, if the installation involves laying trays in hard-to-reach areas or over long distances, additional labor and equipment may be necessary to ensure that the work is done safely and efficiently.

Cable Tray Derating Explained: Factors, Formula, and Guidelines

Cost Breakdown: Steel Cable Tray Installation Cost Per Meter

Steel Tray Price Range

The cost of steel cable trays generally falls between $5 and $25 per meter, depending on several factors such as the tray’s gauge, finish, and the specific features of the tray. A standard steel tray, without any additional features or coatings, typically sits at the lower end of the price range. These trays are commonly used in basic electrical installations where environmental exposure is minimal, and there is no need for specialized protective coatings.

However, if the steel trays are equipped with extra features such as protective coatings or are made from higher-grade materials for better durability and corrosion resistance, the price will rise. For instance, trays with galvanized finishes or those coated with a powder coating will typically be more expensive due to the additional material cost and the labor required for the coating process. Additionally, if the trays are manufactured using higher-gauge steel (thicker steel for added strength), this will also contribute to a higher price.

Steel Tray Installation Costs

The installation of steel cable trays can significantly affect the overall cable tray installation cost per meter, as several factors contribute to the final price.

• Labor Costs:
  Installing steel trays involves a considerable amount of labor, which accounts for a large portion of the total installation cost. On average, the cable tray installation cost per meter increases by approximately $10 to $30 per meter depending on the complexity of the installation and the labor rates in the area. In some regions or cities where labor is more expensive, these costs can be at the higher end of the scale. Installation complexity can vary, with factors like the height of installation, the need for custom bends, or complicated layouts affecting the overall labor costs. For example, if the installation is in a multi-story building or requires special access equipment (such as scaffolding or lifts), the cost may increase.
• Installation Accessories:
  In addition to the steel trays themselves, other accessories such as brackets, connectors, fasteners, and supporting materials are often required for a complete installation. These components are essential for ensuring the stability and safety of the tray system. For example, additional supports may be required to maintain tray alignment and prevent sagging over long distances. Custom fittings may also be needed if the installation has unique routing needs, such as corners, turns, or connections between trays. On average, the cost of accessories could increase the overall cable tray installation cost per meter by 10-15%. For instance, if the base cost of the steel tray is $20 per meter, the added cost for necessary accessories and fittings might push the total cost by an additional $2 to $3 per meter.

Total Installation Cost

Taking into account both the steel tray cost and the additional installation-related expenses, the total installation cost per meter for steel cable trays can range from $20 to $60 per meter. This price range includes not only the cost of the tray but also the labor and installation accessories. A simple installation with minimal accessories might fall closer to the lower end of the range, while a more complex installation with additional fittings, coatings, or specialized labor could push the cost toward the higher end.

For instance, a standard steel tray without any special coatings might cost around $5 per meter, and with a basic labor charge of $10 per meter, the installation might cost around $15 per meter in total. However, if you are installing trays in a more demanding environment (such as an outdoor or industrial facility), the cost could go up due to the need for corrosion-resistant coatings, extra supports, and complex labor requirements. This could easily bring the total installation cost to $30, $40, or even $60 per meter in more complicated situations.

Steel cable tray installation cost per meter varies based on factors like material specifications, labor complexity, and additional accessories. It’s crucial for project planners and contractors to account for all these variables to develop an accurate budget and avoid unexpected costs during installation.

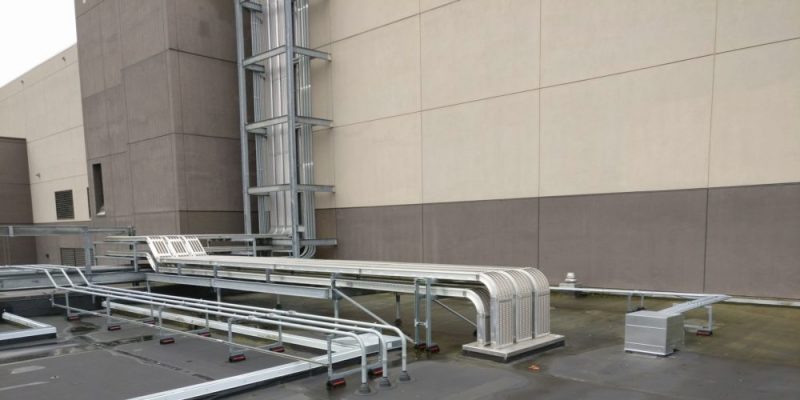

Key Aspects of Cable Tray Installation

Proper cable tray installation requires careful planning, the right material and tray type selection, and adherence to best practices during the physical setup. Each of these factors not only affects the functionality and safety of the system but also plays a critical role in determining the cable tray installation cost per meter. Utilizing a Price Estimator at the planning stage can help quantify these variables, allowing for more accurate cost forecasting and decision-making.

Planning and Design

Route Planning

Before beginning the installation, it’s essential to plan the exact routing of the cable trays. The route should minimize interference with existing systems such as HVAC, plumbing, or fire suppression, while also ensuring compliance with building codes and accessibility for future maintenance. A well-designed route can reduce material waste and installation time, helping to manage the cost per meter effectively.

Tray Type Selection

Selecting the appropriate cable tray type is vital for both functionality and cost control. Common types include:

• Ladder Cable Trays: The most widely used type, offering easy cable access and efficient ventilation, often resulting in lower labor costs.
• Perforated Cable Trays: These allow for cable fastening and ventilation but may require more labor-intensive mounting, slightly increasing the cost per meter.
• Solid Bottom Cable Trays: Best for environments needing extra protection from dust or liquids, though they may be more expensive to install due to their enclosed structure.
• Trough Cable Trays: Offer similar benefits to ladder trays with added side protection, balancing cost and protection.
• Raceways and Wireways: Used in confined spaces, these are typically more labor-intensive to install, raising the installation cost per meter.

Choosing the correct tray type based on the installation environment and cable load can significantly impact overall project expenses.

Installation Process

The physical installation of cable trays involves several critical steps that directly impact the system’s functionality, safety, and overall cost. From mounting supports to aligning trays and managing bends, each stage contributes to the total labor and material requirements. These steps are especially important when estimating the cable tray installation cost per meter, as factors like project complexity, accessibility, and custom components can significantly alter pricing.

Mounting Supports

The installation begins by securely mounting brackets or supports onto walls, ceilings, or floors. This step forms the structural foundation for the cable trays. Challenging environments—such as overhead spaces or confined areas—require more labor and sometimes specialized equipment, increasing both installation time and the cost per meter due to higher labor intensity and added safety precautions.

Spacing of Supports

Supports are usually spaced 4 to 5 feet apart to prevent tray sagging and ensure even weight distribution. Improper spacing can lead to structural issues or increased material use. Tighter spacing means more supports and higher costs, while wider gaps can reduce material costs but risk compromising the integrity, affecting the cost per meter due to potential rework.

Tray Assembly and Joining Sections

Tray sections are connected using bolts, couplings, or other fasteners. For longer cable runs, additional connectors are needed to ensure proper alignment and secure joints. In multi-story or complex layouts, this step requires more precision and coordination, increasing labor time and slightly raising the cable tray installation cost per meter due to increased handling.

Angles and Bends

To accommodate changes in direction, installers use prefabricated bends or create custom angles on-site. While pre-made components are quicker to install, custom fabrication offers greater flexibility at a higher labor cost. These adjustments are often necessary in real-world layouts, especially in congested spaces, contributing to higher per-meter costs for more customized projects.

Tray Placement and Cable Clearance

Once trays are assembled, they must be carefully positioned on the supports and properly aligned. It’s essential to leave enough space for smooth cable placement without overcrowding. Accurate placement reduces long-term risks like cable damage or future modifications, which can be costly. Careful execution at this stage helps maintain a predictable cost per meter.

Choosing the Right Wall Cable Tray for Your Setup

Installation Costs and Budgeting Tips for Cable Tray Installation Cost Per Meter

Labor Costs and Installation Time

Labor costs are a major component of cable tray installation expenses, with time requirements largely influenced by project complexity and installation environment. Simple installations in accessible areas may take around 1 to 2 hours per meter, while more complex setups—such as those in tight spaces, with custom fittings, or at high elevations—can take significantly longer. Additionally, labor rates vary by location, with urban areas or high-cost regions typically charging more than rural areas. As a result, both installation difficulty and regional labor rates should be carefully considered when budgeting, as they can greatly affect the overall project cost.

Optimizing Costs

To help reduce the overall cable tray installation cost per meter, consider the following strategies:

Bulk Purchasing

One of the most effective ways to lower material costs is by purchasing cable trays in bulk. Many suppliers offer discounts on large orders, which can reduce the cost per meter. If you are working on a large-scale project that requires significant quantities of cable trays, this can lead to substantial savings. When planning a purchase, ensure that you factor in the additional storage or shipping costs associated with bulk buying to ensure that the discount offsets those expenses.

Choosing Simpler Designs

The design of the cable tray plays a critical role in determining the installation cost. Ladder trays, for example, are typically more cost-effective than solid-bottom trays. Ladder trays, with their open design, are easier to install and allow for greater flexibility in accommodating cables of varying sizes. Solid-bottom trays, while offering additional protection and organization, require more materials and installation time, thus leading to higher costs. By opting for a simpler, cost-effective ladder tray design, you can save both in material and labor costs.

Self-Installation (DIY)

If you have the necessary skills and experience, self-installation can significantly reduce labor costs. This approach, however, comes with its own risks. For example, it’s important to follow proper safety guidelines, especially when working with high-voltage cables, and ensure that your installation complies with all relevant electrical codes. While self-installation can cut down on labor expenses, it’s critical to balance the cost savings with the potential risks. If you’re not experienced, it’s often better to hire a professional to ensure that the installation is done safely and correctly.

Budgeting Tips

Get Multiple Quotes

Always obtain multiple quotes from different suppliers and installers. Prices can vary greatly depending on location, company, and the scope of work involved. By getting at least three quotes, you’ll have a clearer understanding of the market rate and can compare the cost estimates more effectively. Additionally, negotiating with suppliers or installers may help you secure better prices, especially if you’re purchasing in bulk or hiring for a large project.

Include Accessories and Support Materials in Your Budget

Don’t forget to account for the additional components needed for a successful installation, such as brackets, mounting hardware, connectors, and custom fittings. These materials may not be part of the basic cable tray system but are essential for ensuring the trays are securely mounted and properly aligned. Be sure to include these items in your budget to avoid surprises when the installation begins.

Account for Future Maintenance

Maintenance and long-term costs should also be considered when budgeting for cable tray installation. For example, trays with corrosion-resistant coatings or those made from stainless steel may have higher initial costs but offer lower maintenance over time. This could save you money in the long run, especially in environments exposed to moisture or chemicals.
