Cable trays mounted in a tunnel typically use trapeze mounting for optimal support, stability, and load-bearing capacity. These trays are essential for organizing and securing cables in confined tunnel environments, where efficient cable management is critical to operational reliability and safety. They are designed to accommodate high cable volumes while maintaining accessibility for inspection and maintenance. By improving airflow and preventing overheating, cable trays help protect cables from environmental factors such as moisture, dust, and vibration. Their use reduces the risk of cable damage and system failure, supporting long-term functionality. Widely applied in transit systems, utility tunnels, and underground facilities, cable tray provide a dependable solution for routing power, control, and communication cables in demanding infrastructure settings.

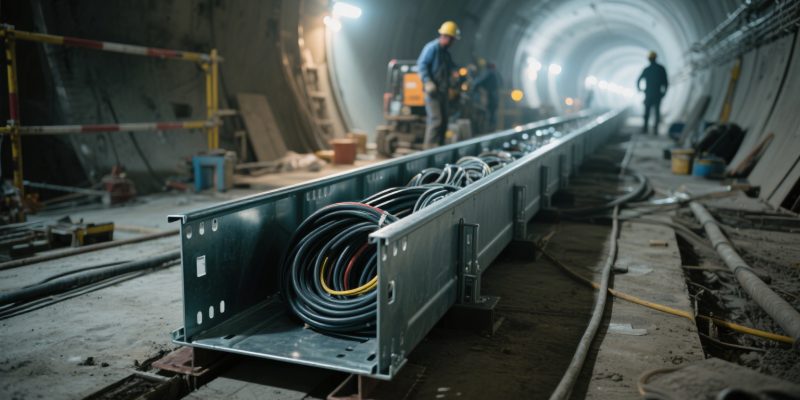

Types of Cable Trays for Tunnel Use
When choosing cable trays mounted in a tunnel, understanding the available types is crucial. Each type serves specific purposes, offering unique features for cable management. Proper selection enhances safety, efficiency, and durability, ensuring the system meets the demands of the tunnel environment.
Ladder-Type Cable Trays
Ladder-type cable trays are widely used in tunnels due to their ladder-like structure with side rails and cross members, which allows excellent ventilation to prevent cable overheating in confined spaces. This design facilitates easy maintenance, reduces dirt and debris buildup, and effectively supports heavy-duty cables. These trays are best suited for tunnel environments that require frequent cable access, such as transit tunnels, where thermal management and system modifications are common.
Solid-Bottom Cable Trays
Solid-bottom trays offer full base coverage, making them ideal for protecting small or sensitive cables in tunnels from environmental factors such as dust, debris, or moisture. Their enclosed design minimizes electromagnetic interference, prevents cable sagging, and ensures consistent support, which prolongs cable life. These trays are commonly used in utility or water tunnels where full cable shielding is necessary and where conduit installation is impractical due to space limitations.
Wire Mesh Cable Trays
Wire mesh trays are valued for their lightweight, flexible design and open-grid structure, which promotes natural ventilation and prevents heat buildup. Their adaptability allows for quick modifications and easy routing around obstacles, making them suitable for tight tunnel spaces. They are frequently used for communication or smaller power cables in densely packed tunnels, offering a balance of durability and ease of installation.
Coatings for Harsh Environments
Cable trays used in tunnels often require protective coatings—such as galvanized steel, epoxy, or PVC—to guard against corrosion, chemicals, and moisture. These coatings help extend the trays’ lifespan by resisting rust and degradation, especially in environments with high humidity or chemical exposure. Coated trays are crucial for maintaining system reliability in underground settings and offer a practical alternative to conduit systems, particularly where direct environmental exposure cannot be avoided.
Simplify Projects with This B-Line Cable Tray Installation Guide

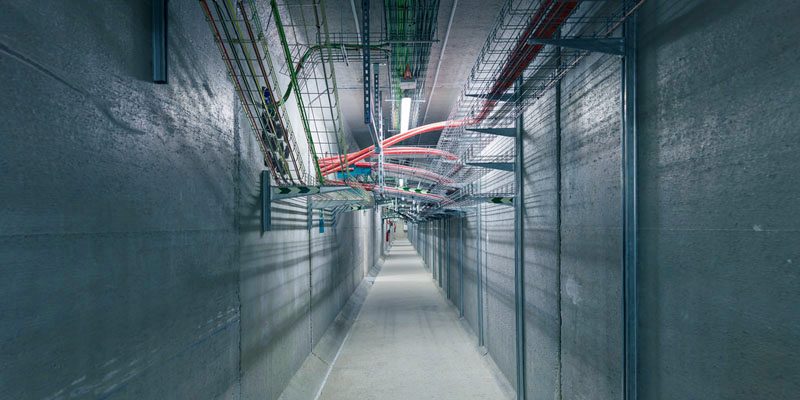

Installation Considerations for Cable Trays Mounted in a Tunnel
Proper planning and execution are crucial for the successful installation of cable trays mounted in a tunnel. Various aspects, including support systems, space optimization, and safety measures, must be addressed to ensure efficiency and compliance. This section explores these considerations in detail, incorporating best practices for cable tray and conduit installation.
Single Rod Suspension Systems: Features and Uses
Single rod suspension systems are a common and efficient method for supporting cable trays in tunnel environments. These systems use a single vertical rod to suspend trays from the tunnel ceiling or walls, offering a space-saving and structurally sound solution for lightweight to medium-duty applications. They are especially suited for narrow tunnels due to their minimal footprint and easy access for maintenance. In addition to being cost-effective, single rod systems are quick to install and reduce labor time.
How to Make a 45-Degree Bend in Cable Trays
To create a 45-degree bend in cable trays mounted in a tunnel, precision and structural consistency are essential. Pre-fabricated bend sections are typically used to ensure alignment and ease of installation, while custom bends can be made by carefully cutting and shaping the tray to distribute the load evenly. This method is important for both cable trays and conduit systems, as smooth bends reduce mechanical stress on the cables and help maintain their integrity over time.
Strategies for Efficient Cable Tray Layout
Efficient space utilization is critical in tunnel environments, where room is often limited. Strategically laying out cable trays to follow the natural path of the tunnel and stacking trays vertically along the walls can optimize the available space while maintaining accessibility. This layout minimizes the need for extra joints and bends, improving both performance and installation efficiency. Such organization ensures that cable trays mounted in a tunnel can accommodate necessary infrastructure without overcrowding.
Tray Selection Based on Tunnel Dimensions
Choosing the right type of cable tray depends largely on the tunnel’s dimensions and the expected cable load. Narrow tunnels often benefit from compact systems like wire mesh trays, while larger spaces can accommodate ladder or solid-bottom trays that support heavier loads. The decision between using cable trays or conduit also hinges on spatial constraints and maintenance needs, with conduit offering more protection but requiring more installation space.
Guidelines for Carrying and Installing Raceways
Safety during raceway and cable tray installation in tunnels is paramount. Workers should use ergonomic lifting techniques and proper tools to avoid injury and ensure smooth positioning. Trays and raceways must be securely fixed to withstand environmental vibrations or movement, with regular inspections conducted during and after installation to ensure safety and regulatory compliance.
Ensuring Worker Safety in Confined Tunnel Spaces
Tunnel work environments pose unique risks due to confined spaces and limited ventilation. To ensure worker safety, ventilation systems must be active, and all personnel should wear proper protective gear like helmets, gloves, and harnesses. Clear emergency protocols and unobstructed escape routes are essential, along with training on safe handling of cable tray and conduit installation tools. Prioritizing these measures allows for safe, efficient, and compliant installations of cable trays mounted in a tunnel.
Choosing the Best High Quality Types of Cable Tray
Cable Trays Mounted in a Tunnel : Compliance with Standards and Codes
Compliance with standards is critical for the safe and efficient installation of cable trays mounted in a tunnel. Regulatory bodies establish guidelines to ensure these systems perform reliably under the challenging conditions of tunnel environments. This section explores the essential aspects of standards, safety, and performance requirements for cable tray installations.
Understanding NEC Requirements
The National Electrical Code (NEC) outlines critical requirements for the design, installation, and maintenance of cable trays mounted in a tunnel, ensuring safety and operational reliability. Often referenced as the primary cable tray electrical code, NEC Article 392 addresses key aspects such as material selection, secure installation, clearance for maintenance, and proper grounding. Non-compliance can lead to safety hazards and system malfunctions.
Local Regulations and Environmental Considerations
In addition to NEC, local regulations play a crucial role in tunnel cable tray installations, often addressing environmental and regional challenges such as moisture, chemical exposure, or seismic activity. These regulations may require the use of coated or corrosion-resistant trays tailored to the specific conditions of the region. Meeting both national and local standards ensures safety, system durability, and environmental resilience.
Safety and Performance Standards for Tray Installations
Safety and performance standards for cable trays mounted in a tunnel ensure secure installation, proper support, and adequate clearances to prevent hazards. Fire-resistant materials reduce tunnel fire risks, while compliance with load-bearing and ventilation standards maintains reliable performance. Meeting these requirements enhances safety, minimizes maintenance, and ensures long-term durability in challenging tunnel environments.
Factors Influencing Compliance
Material selection and installation techniques are key factors influencing compliance for cable trays mounted in a tunnel. Materials must meet fire resistance, corrosion protection, and durability standards—especially in moist, chemical, or seismic environments. Proper installation with secure supports and clearances is essential to avoid violations or failures. Regular training and adherence to guidelines ensure compliance with NEC and local codes.
The Importance of Compliance
Compliance is essential for protecting both infrastructure and personnel, especially in tunnels where limited space and ventilation increase risk. It helps prevent system failures, fires, and operational disruptions. Adhering to standards also extends the lifespan of cable trays mounted in a tunnel, reducing maintenance and downtime. Reliable, compliant installations ensure long-term safety and performance under challenging conditions.
Cable Trays Mounted in a Tunnel : Maintenance and Longevity
Proper maintenance is essential to ensure the safe and long-lasting performance of cable trays mounted in a tunnel. These systems are exposed to harsh environmental conditions such as moisture, vibration, and chemical exposure, all of which can compromise structural integrity over time. By implementing a proactive maintenance strategy—including regular inspections, cleaning routines, and preventative measures—operators can minimize failure risks, extend service life, and maintain reliable operation in demanding tunnel environments.
Periodic Inspection Requirements for Cable Trays in Tunnels
Factors Necessitating Regular Inspections
Cable trays in tunnels face moisture, vibration, and chemical exposure, which can lead to corrosion or structural wear. Regular inspections help detect issues early, preventing failures. Frequency depends on material type and tunnel conditions—coated trays in harsh environments may require more frequent checks to ensure continued safety and performance.
Inspection Guidelines
Inspections should include visual checks for corrosion, loose fittings, deformations, and debris. Technicians must ensure trays are securely fastened and supports remain stable under vibration. Regular assessments maintain structural integrity, reduce failure risks, and support reliable operation of cable trays mounted in a tunnel over time.
Best Practices for Cleaning and Maintaining Tray Systems
Routine Cleaning
Routine cleaning of cable trays prevents debris buildup that can obstruct airflow and cause overheating. In humid tunnel environments, accumulated dust and dirt may accelerate corrosion. Cleaning methods should match the tray material—coated trays, for example, require gentler techniques to avoid damaging protective layers, preserving both function and durability.
Steps for Effective Maintenance
Maintenance includes checking for deformations, misalignments, or loose supports caused by vibration or cable load. Re-coating trays in corrosive areas helps extend lifespan, while early attention to small issues prevents expensive future repairs. Regular inspections of both trays and their supports are essential to ensure continuous performance in tunnel conditions.
Ensuring Longevity with Preventative Maintenance
Preventative maintenance ensures long-term performance by replacing worn parts, reinforcing supports, and protecting trays from environmental damage. These proactive steps minimize unexpected failures and extend the life of cable trays mounted in a tunnel. Consistent upkeep reduces system downtime and supports overall operational reliability.
Choosing the Right Snap On Cable Tray Type

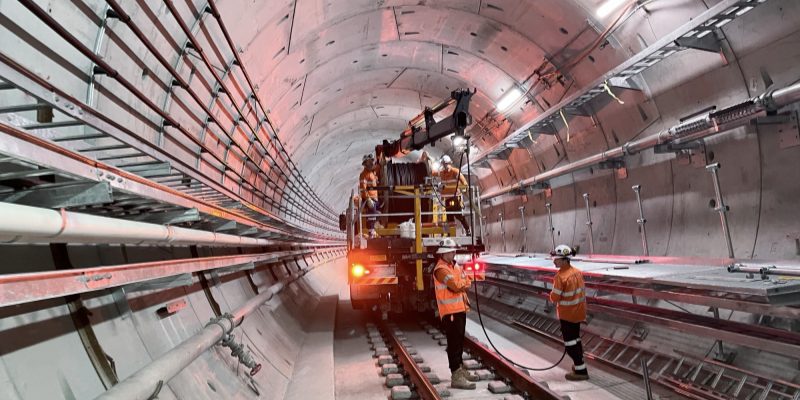

Likely Uses of Cable Trays Mounted in a Tunnel
Cable trays mounted in a tunnel are essential for supporting and organizing cables in underground environments. They improve airflow, protect against moisture and debris, and simplify maintenance. Commonly used in infrastructure, they ensure safety, efficiency, and long-term performance across a range of applications including transit, utilities, industry, and secure facilities.
Transit and Transportation Tunnels
In subway and railway tunnels, cable trays mounted in a tunnel support high-voltage and signaling cables. They prevent sagging, resist vibration, and ensure stable routing. Their organized layout allows quick inspection and maintenance, minimizing service interruptions and supporting safe, continuous operation in high-traffic underground transportation systems.
Municipal and Utility Tunnels
Utility tunnels carry services such as water, gas, sewage, and telecom. Cable trays separate and support electrical and data lines alongside other infrastructure. Their durable construction prevents corrosion and damage, ensuring reliability in harsh underground environments while allowing safe, accessible, and efficient routing for essential public utilities.
Industrial and Service Tunnels
Industrial plants, energy facilities, and large complexes use tunnel cable trays to manage power, control, and instrumentation cables. These trays withstand mechanical stress, heat, and chemicals. Their structured layout allows for safe, organized cable routing that supports automation, monitoring, and uninterrupted operations in demanding underground workspaces.
Secure and Specialized Underground Facilities
Secure underground environments like data centers, military bunkers, and storage sites rely on cable trays for dependable routing. Trays protect sensitive systems from environmental threats and physical wear. Their stability ensures consistent performance, uninterrupted connectivity, and reduced maintenance for high-stakes facilities requiring reliability and controlled access.
Access, Maintenance, and Emergency Tunnels
In tunnels designed for inspection, ventilation, or emergency access, cable trays carry lighting, alarms, and communication lines. Their neat arrangement ensures fast repairs and system checks. Used in both routine maintenance and critical response scenarios, they support operational readiness, safety, and infrastructure reliability across various tunnel types.
FAQs about Cable Trays Mounted in a Tunnel
The NEC standard provides specific guidelines for cable tray installations, ensuring safety and efficiency. According to the NEC, cable trays must be securely supported to prevent sagging or displacement. Proper grounding and bonding are required to minimize electrical risks. The standard also specifies the minimum and maximum allowable spacing between supports to maintain structural integrity. For cable trays mounted in a tunnel, clearance for maintenance and heat dissipation must also be considered. These guidelines are essential for creating reliable and safe cable management systems in various environments, including tunnels.
Tray cable is often rated for underground use if it meets specific insulation and durability standards. Cables must be listed as suitable for wet or damp conditions, as underground environments are prone to moisture. Certain tray cables come with additional protective coatings to resist physical damage and chemical exposure. For tunnels, which may mimic underground conditions, these cables are especially effective. Always verify the rating of the cable with its manufacturer’s specifications to ensure it aligns with the intended application and complies with local regulations.
In tunnels, cable trays are commonly mounted using wall brackets, ceiling supports, or suspension rods. These mounting options optimize space while ensuring the trays remain secure. Suspension systems, such as single rod suspensions, are particularly popular for their ability to save space in narrow tunnel environments. Wall-mounted brackets are ideal for tunnels where side walls provide stable anchoring points. The type of mounting system chosen depends on the tunnel dimensions, cable load, and environmental factors. Proper mounting ensures safety and durability in challenging conditions.
The NEC restricts the installation of certain cable types on cable trays to maintain safety and compliance. Cables not specifically listed for tray use are prohibited, as they may lack adequate insulation or structural support. For example, standard flexible cords or cables without a flame-resistant rating cannot be used. Additionally, cables with damaged or worn insulation should never be installed on cable trays mounted in a tunnel or any other location. Using approved cables ensures the safety and efficiency of the system and compliance with industry regulations.
