Bus Duct vs Cable Tray：Definition and Types
What is Bus Duct?
A bus duct is a specialized system used to distribute high-current electrical power through busbars, which are housed in protective casings. It is commonly used in environments with high electrical demand, such as industrial plants and substations. Bus ducts ensure safety and reliability in power distribution. In contrast, duct cable tray organize and support low-voltage cables, offering a safe pathway for wiring with easy maintenance and modification. Cable bus systems, similar to bus ducts, use insulated conductors for power distribution, offering more flexibility and customization. While both serve similar functions, bus ducts are preferred for high-power environments, while cable trays are used for low-voltage systems needing easier modifications.
Types of Bus Ducts
Sandwich Bus Ducts
Sandwich bus ducts are designed with busbars enclosed between layers of insulating material, providing excellent protection and reducing the risk of electrical faults. The insulation not only offers physical protection but also significantly reduces electromagnetic interference (EMI), making them ideal for sensitive environments where electrical noise could disrupt nearby equipment. These ducts are often used in data centers or laboratories, where the need to shield sensitive electronics and equipment from EMI is critical.
Cable Bus Ducts
Cable bus ducts utilize insulated conductors instead of rigid busbars, offering a more flexible and adaptable system. This type of bus duct is perfect for installations where flexibility in cable management is required or when future reconfiguration or expansion of the system is needed. Cable bus ducts are typically used in high-voltage installations such as power plants or large manufacturing facilities, where electrical needs are likely to grow over time.
Plug-In Bus Ducts
Plug-in bus ducts are designed to allow the easy insertion and removal of plug-in units, such as circuit breakers or distribution boards, at various points along the bus duct. This flexibility makes it simple to add or remove electrical components as needed without disrupting the overall system. Plug-in bus ducts are ideal for facilities where frequent changes in electrical equipment are required, such as large industrial plants or commercial buildings.

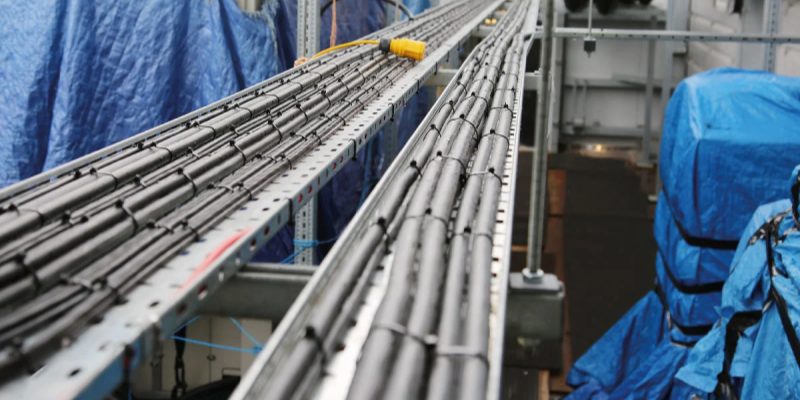

What is Cable Tray?
A cable tray is an open support system designed to manage electrical cables, offering flexibility for routing, modification, and expansion. Made from materials like metal or fiberglass, cable trays come in various designs such as ladder, trough, and wire mesh trays to suit different needs. They are ideal for environments where frequent changes or expansions are expected. In contrast, bus ducts house conductors in a sealed system, providing enhanced protection and reliability for high-power applications. Bus duct vs cable tray becomes clear when considering environments that require low maintenance, durability, and safety. Understanding these differences helps in selecting the appropriate system based on project needs.
Types of Cable Trays
Ladder Trays
Ladder trays are characterized by two parallel side rails connected by crossbars (rungs), providing excellent support for heavy cables. Their open design allows for easy access, making it simpler to add, remove, or reroute cables as needed. These trays are ideal for industrial and commercial buildings where large cables, such as power cables or control wires, need to be supported.
Trough Trays
Trough trays feature solid or perforated sides and bottoms, offering more protection than ladder trays while still maintaining an open design. These trays provide additional protection for cables, preventing damage from external elements like dust or falling objects. Trough trays are commonly used in environments where a balance between cable protection and accessibility is needed, such as in manufacturing plants.
Wire Mesh Trays
Wire mesh trays are made from woven or welded metal wire, offering a lightweight and flexible cable management solution. These trays are easy to install, modify, and relocate, making them a cost-effective choice for large installations where cables need to be frequently adjusted. Wire mesh trays are often used in office buildings and commercial facilities, where flexibility and easy access to cables are essential.
What is Cable Tray Installation Cost Per Meter Explained
What is the Difference Between Bus Duct and Cable Tray?
Bus ducts and cable trays are both essential components in electrical distribution systems, but they serve different functions, have distinct compositions, and are suited to different applications. Below, we explore the key differences between these two systems, highlighting the unique benefits of bus duct vs cable tray in various settings.
Functionality
Cable trays support and protect cables, serving as brackets for organizing power and control cables. Bus ducts, on the other hand, are designed for power distribution, typically used in AC 50HZ, 380V three-phase systems. Bus ducts replace traditional cable systems for transmitting electrical power, making them ideal for high-power applications requiring reliable and efficient power distribution.
Composition
Cable tray systems consist of brackets, supporting arms, and accessories, providing support for cables. Bus ducts, however, include a metal protective shell, conductive bars, insulating materials, and related accessories. This structure allows bus ducts to direct electricity efficiently in a more compact and organized manner, making them suitable for high-density installations.
Size and Specification
Cable trays are larger systems that accommodate multiple cables, providing substantial space for routing. Bus ducts are smaller in size, making them ideal for environments with space constraints. When space optimization is crucial, such as in high-density environments, bus ducts offer a more efficient solution for power distribution.
Intensity of Use
Cable trays are typically used for laying power and control cables, supporting general cable distribution. Bus ducts, however, are designed for power distribution, handling high-power systems efficiently. Bus ducts are better suited for environments where high current-carrying capacity is needed, offering superior performance for power-intensive applications.
Turning Radius
Cable trays tend to have a larger turning radius, which can make installation less flexible in tight spaces. In contrast, bus ducts are designed to make right-angle turns easily, allowing them to fit more efficiently in confined environments. The cable tray radius can be a limiting factor in such situations, making bus ducts a more suitable option when space for cable routing is limited.
Span
Cable trays have a larger span, covering greater distances without needing frequent support brackets. Bus ducts, however, have a smaller span and require more frequent support hangers. This makes cable trays more suitable for installations with less frequent support requirements, while bus ducts ensure greater structural stability in compact environments.
Tightness
Bus ducts offer better sealing, providing protection from dust, moisture, and temperature fluctuations. Their sealed design makes them more adaptable for installation in cable trenches or interlayers within buildings. Cable trays, being open or partially open, require support brackets and are more exposed to environmental factors, making them less suited for harsh environments.
Thickness and Strength
Bus ducts are typically stronger and made of heavier materials, allowing them to handle high power and voltage applications. Cable trays, while still strong, are generally less robust. They are better suited for installations where the cables are not exposed to extreme conditions, providing reliable support for lower-intensity cable systems.

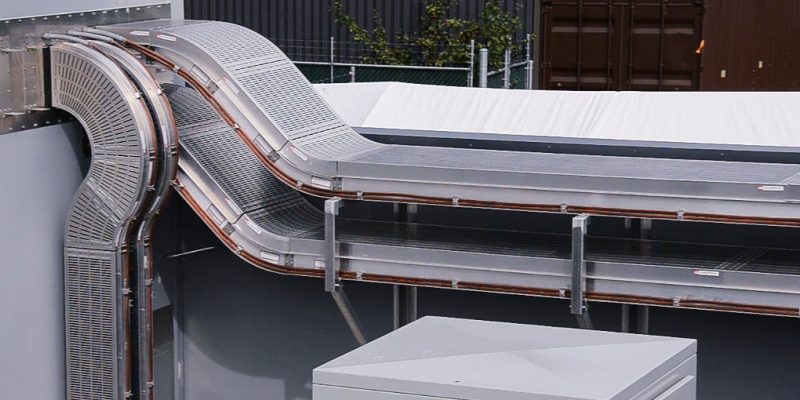

Bus Duct vs Cable Tray: Pros and Cons
When selecting between bus duct vs cable tray, it’s important to consider their key advantages and limitations. Bus ducts are compact, durable, and efficient, ideal for high-power environments like industrial plants and data centers, though they come with higher costs and complex installation. Cable trays offer flexibility, cost-effectiveness, and easy access for modifications, making them suitable for projects requiring frequent changes. However, they offer less protection and require more space. The choice depends on project needs, such as space, power requirements, flexibility, and budget.
| Category | Bus Duct | Cable Tray |
|---|---|---|
| Space & Design | Compact, space-saving design ideal for high-density areas | Requires more space, less compact, but flexible design |
| Durability & Protection | Highly durable, offers more protection, sealed system | Exposed cables are more vulnerable to damage, less protection |
| Efficiency & Reliability | Efficient for high-power, low loss; less reliable over time due to connections | Reliable with continuous conductors; more risk of failure in connections |
| Installation & Maintenance | Faster installation, low maintenance, but complex and expensive | Easier and faster to install, but requires more frequent maintenance |
| Flexibility & Modifications | Less flexible, difficult to modify after installation | Highly flexible, easy to modify and reroute cables |
| Cost | Higher initial cost and installation cost | More cost-effective, lower initial costs |
| Fire & Safety Rating | Lower combustive energy, safer in case of fire | Higher insulation, better fire safety rating |
Bus Duct vs Cable Tray: Price and Cost Comparison
When comparing the costs of bus duct vs cable tray, several factors must be considered, including initial cost, material costs, installation, maintenance, and long-term durability. Bus ducts are typically more expensive upfront due to premium materials like copper and aluminum, and their complex installation process. However, they offer lower long-term maintenance costs and high durability, making them more cost-effective in high-demand environments. On the other hand, cable trays have a lower initial cost, are easier to install, and use more affordable materials, but they may incur higher maintenance costs over time, especially in harsh or exposed environments.
| Cost Factors | Bus Duct | Cable Tray |
|---|---|---|
| Initial Cost | Higher due to premium materials like copper, aluminum, and custom manufacturing. | Lower due to simpler design and more common materials (e.g., steel, aluminum). |
| Material Costs | Made from durable materials (copper, aluminum) which increase material costs. | Made from cost-effective materials like steel, aluminum, or fiberglass. |
| Installation Cost | Higher, as installation is more complex and requires specialized labor and precise fitting. | Lower, due to simpler installation with less specialized labor needed. |
| Maintenance Costs | Lower long-term maintenance costs, as the sealed design reduces wear, damage, and the need for repairs. | Higher, especially in harsh environments, as exposed cables are susceptible to damage, wear, and environmental factors. |
| Durability | Very durable with a long lifespan, minimizing long-term maintenance and replacements. | Less durable over time, exposed cables can suffer from wear and environmental damage, requiring more frequent upkeep. |
| Long-Term Cost Effectiveness | More cost-effective in high-demand, mission-critical environments due to fewer repairs and long-term durability. | More cost-effective initially, but maintenance and repair costs can increase over time in harsh or exposed environments. |
Choosing the Right Wall Cable Tray for Your Setup
Cable Bus vs Bus Duct Systems: Key Differences
Bus ducts and cable bus systems serve similar purposes in power distribution but differ in design and application. Bus ducts are ideal for high-power environments with limited space, offering reliability, high current capacity, and minimal maintenance. In contrast, bus duct vs cable tray becomes important when considering systems for more flexible applications, as cable trays provide greater scalability and are easier to modify. Cable bus systems offer fewer joints and are more customizable, making them suitable for specific needs. Cable trays, though not designed for high-power capacity, are better for environments needing frequent modifications or easy access for maintenance. The choice between these systems depends on power needs, flexibility, maintenance, and space requirements.
What is a Cable Bus System?
A cable bus is a power distribution system that uses insulated conductors enclosed in a rigid or flexible casing. These systems are designed to transport electrical power over long distances with fewer joints compared to traditional wiring systems. They offer greater flexibility and are highly customizable, which makes them suitable for various installation environments.
Key Features of Cable Bus Systems
- Flexibility: Cable bus systems are designed for easy customization and can be adapted to meet different installation needs. They are highly suited for environments where future modifications or expansions are expected. This makes them ideal for use in places such as data centers, commercial buildings, and industrial plants where layouts might change over time.
- Longer Conductor Runs: One of the significant benefits of cable bus systems is the ability to handle longer conductor runs with fewer joints. This can reduce the potential for electrical faults, as there are fewer connections that can weaken over time.
- Modular Design: Cable bus systems are typically modular, allowing for quick expansion or reconfiguration. As the needs of the facility grow, the system can easily be adapted without major redesigns or downtime.
Cable bus systems are often used in highly dynamic or expanding environments where future changes to the electrical infrastructure are anticipated. For example, power plants, commercial office buildings, or large warehouses may require cable bus systems because of their adaptability and ability to support a variety of cable types.
What is a Bus Duct System?
Bus ducts are pre-manufactured, rigid systems designed to deliver power from one point to another in a highly structured, reliable manner. A bus duct consists of conductive bars (busbars) that are housed in a protective casing, and these systems are often sealed to prevent contamination or damage from the environment. Bus ducts are primarily used to distribute high-current power in high-demand industrial and commercial applications.
Key Features of Bus Duct Systems
- High Power Capacity: Bus ducts are engineered to handle high currents, making them ideal for industrial plants, substations, and high-rise buildings where power needs are substantial. Their design allows them to manage higher electrical loads with minimal voltage drops, which is critical in environments where consistent, reliable power distribution is essential.
- Compact and Rigid Design: Unlike cable bus systems, bus ducts are more rigid and compact. They are designed to be sealed, which provides better protection against environmental damage, dust, moisture, and electromagnetic interference (EMI). This makes them a better option for mission-critical environments where safety and reliability are paramount.
- Minimal Maintenance: Bus ducts generally require less maintenance due to their sealed design, which reduces the risk of physical damage or wear over time. They also typically have a longer lifespan, making them more suitable for facilities that require continuous power supply without the need for frequent maintenance.
Bus ducts are often used in applications where high-current capacity, reliability, and safety are crucial. For example, they are commonly found in manufacturing plants, substations, or data centers with significant electrical demand.
Key Differences Between Cable Bus and Bus Duct
| Feature | Cable Bus | Bus Duct |
|---|---|---|
| Design Flexibility | Highly flexible, customizable, and modular for future expansion. | Rigid and pre-manufactured, offering less flexibility. |
| Application | Ideal for environments needing scalability and flexibility, such as data centers, commercial buildings, and industrial plants. | Best suited for high-power, high-current applications like industrial plants, power stations, and substations. |
| Conductor Design | Uses insulated conductors with fewer joints, allowing for longer runs. | Uses busbars, offering a compact and rigid design for structured power distribution. |
| Power Capacity | Suitable for medium to high-power loads but typically less than bus ducts. | Engineered to handle high-power demands, suitable for mission-critical and high-density installations. |
| Maintenance Requirements | May require more frequent maintenance due to environmental exposure, but offers flexibility for changes. | Lower maintenance needs due to sealed design and durability. |
| Durability | Good, but more exposed to wear, moisture, and physical damage compared to bus ducts. | Very durable and designed for high power and environmental protection. |
| Cost | Generally lower initial cost but may incur more long-term maintenance due to the exposed design. | Higher upfront cost due to materials and complex installation but offers long-term cost efficiency. |
Bus Duct vs Cable Tray：Sandwich Bus Duct and Its Advantages
What is Sandwich Bus Duct?
A sandwich bus duct is a specialized bus duct where busbars are enclosed between layers of insulation material, offering a compact and efficient solution for high-power environments. This design provides superior protection against environmental factors like dust, moisture, and physical damage, making it ideal for high-voltage and high-current applications in mission-critical settings such as power stations, industrial plants, or data centers. Bus duct vs cable tray becomes evident when considering the level of protection needed, as sandwich bus ducts minimize the risk of electrical faults, including short circuits or arcing, and ensure safety and reliability in environments where performance is crucial.
Advantages of Sandwich Bus Ducts
Enhanced Safety and Protection
Sandwich bus ducts provide additional safety by enclosing busbars in insulation, reducing the risk of electric shock or arc flash incidents. The compact design protects busbars from physical damage, impacts, and vibrations. This makes them ideal for high-voltage environments like power stations and industrial facilities, where safety and protection are crucial.
Reduced Electromagnetic Interference (EMI)
The insulation in sandwich bus ducts helps reduce electromagnetic interference (EMI), shielding conductors from external electromagnetic fields. This minimizes potential signal disruptions in sensitive equipment. It’s especially beneficial in environments like data centers, control rooms, and telecommunication facilities where precise control of power and communication systems is necessary.
High Voltage and High Current Handling
Sandwich bus ducts are designed to handle high voltage and current, ensuring safe electricity transport over long distances. Their insulated structure supports large power loads, essential in industries with high power demands. The design also facilitates heat dissipation, preventing overheating, which is critical in high-demand electrical environments like manufacturing and energy systems.
Compact Design
Sandwich bus ducts have a compact design, allowing them to fit in space-limited areas where traditional power distribution systems may not. Their efficient use of space makes them ideal for high-density industrial setups, high-rise buildings, or areas requiring power distribution in confined spaces, such as substations or underground facilities.
Increased Reliability and Longevity
The sealed, insulated design of sandwich bus ducts enhances their reliability, protecting the system from environmental factors like dust, moisture, and corrosive elements. This protection increases their service life compared to other bus duct systems, reducing maintenance needs and providing cost savings, especially in harsh operational environments.
Minimized Risk of Faults
Enclosing busbars in insulation minimizes the chances of electrical faults like short circuits or arcing. The insulation serves as a barrier, preventing dangerous electrical phenomena. This is crucial in mission-critical environments, such as nuclear plants or data centers, where any power disruption could have severe consequences.
Lower Electromagnetic Emissions
The insulation in sandwich bus ducts reduces electromagnetic emissions that can interfere with nearby electronics. This is essential in environments with sensitive devices, like computers or communication systems. The reduced EMI levels make sandwich bus ducts ideal for facilities that must comply with strict electromagnetic compatibility (EMC) standards.
Environmental Protection
Sandwich bus ducts offer superior environmental protection in industries like chemical plants or oil refineries. The enclosed design prevents the ingress of harmful chemicals, solvents, or gases that could damage exposed electrical components. This makes them suitable for explosive environments where safety is a top priority.
Applications of Sandwich Bus Ducts
Sandwich bus ducts are widely used in industries and applications where high reliability, safety, and performance are critical. Their unique construction and benefits make them particularly suited for various environments that demand efficient, durable, and safe electrical distribution. Below are some of the key applications:
Power Stations
Sandwich bus ducts are ideal for power generation facilities where high current and voltage handling capabilities are required. These systems efficiently distribute power across large areas while minimizing the risk of electrical faults. The robust insulation and sealing protect against environmental factors, ensuring consistent and reliable power distribution in demanding power stations.
Data Centers
In data centers, where the performance and safety of electrical systems are vital, sandwich bus ducts are used for their electromagnetic interference (EMI) shielding properties. These ducts ensure that sensitive electronic equipment remains unaffected by external electromagnetic fields, which could disrupt data transmission or processing. Their compact design and safety features help maintain uninterrupted power flow, making them essential in such high-tech environments.
Industrial Plants
Sandwich bus ducts are widely deployed in industrial plants with complex electrical systems, such as automotive manufacturing plants, petrochemical refineries, and heavy machinery facilities. Their ability to safely distribute high-power loads in demanding environments while reducing the risk of electrical faults makes them an invaluable component in ensuring the smooth operation of industrial processes. The high current-carrying capacity and safety features make them suitable for large-scale production environments.
Substations and Switchyards
Sandwich bus ducts are commonly used in substations and switchyards, where high-voltage power transmission is essential. These systems handle large currents efficiently and provide a reliable means of transferring power across vast distances. The sealed, compact nature of sandwich bus ducts makes them ideal for the confined spaces and high-power requirements of substations, ensuring both safety and efficient operation in these critical infrastructures.
Selecting the Right Hazardous Area Cable Tray System
Bus Duct vs Cable Tray：Considerations When Choosing
Choosing between bus duct and cable tray systems depends on project needs. Bus ducts are ideal for high-power environments, offering efficiency, space savings, and safety. In contrast, cable trays provide flexibility, easy installation, and accommodate frequent modifications. Key considerations include power capacity, space requirements, maintenance, and environmental factors. Understanding the differences between bus duct vs cable tray systems helps engineers and project managers make informed decisions, ensuring the most effective solution for the specific needs of the electrical distribution system.
Project Requirements
The type of cables used is critical in choosing between bus ducts and cable trays. Cable trays are best for flexible cables needing frequent modifications, ideal for low-voltage or data cables in settings like data centers or commercial buildings. Bus ducts, however, are suited for high-power applications, offering rigid, secure distribution for high-voltage systems in industrial environments. Environmental factors also influence the choice, as bus ducts provide better protection in harsh conditions like extreme temperatures, dust, or chemicals.
Space and Installation Constraints
Bus ducts are compact and space-efficient, ideal for environments with limited space, such as high-rise buildings and narrow industrial corridors. In contrast, cable tray requirements typically involve more space due to their open design, often needing more room overhead or along walls. While bus ducts require specialized installation and higher costs, they offer long-term reliability. Cable trays, on the other hand, are easier and faster to install, with lower upfront costs, making them ideal for projects with tight budgets or deadlines.
Future Expansion
Cable trays are highly flexible, allowing easy modifications and expansions as the electrical load increases. Their modular design makes them ideal for facilities expecting ongoing upgrades, like data centers or manufacturing plants. Bus ducts are less flexible and require custom modifications for expansion, which can lead to higher costs and longer installation timelines. Bus ducts are better for stable power distribution, but their scalability is limited compared to the adaptability of cable trays.
Budget and Long-Term Costs
Bus ducts typically have a higher initial cost due to specialized materials and installation, but they offer long-term reliability with minimal maintenance. They are a better investment for high-power systems or mission-critical applications. Cable trays are more affordable upfront, with simpler installation and lower initial costs. However, their long-term maintenance may be higher due to frequent modifications or the need for added protection in harsh environments, leading to higher operational costs over time.
FAQs about bus duct vs cable tray
The terms cable bus and bus duct both refer to electrical distribution systems that carry electrical power, but they serve different purposes and are designed differently. Cable bus is a flexible, modular system that uses insulated conductors to transport power. It is often used in environments that require customization and easy adaptability, such as industrial applications. One of the key benefits of cable bus is its ability to accommodate longer runs of cable with fewer joints, providing more flexibility for future expansions or modifications.
In contrast, bus duct is a more rigid, pre-manufactured system that houses metal busbars (usually copper or aluminum) to conduct electricity. Bus ducts are typically more compact and are preferred in environments with high power demand, such as substations or large commercial buildings. Bus ducts provide better protection, higher current-carrying capacity, and are more efficient for high-density power distribution. However, bus ducts are less flexible than cable bus systems, requiring more precise planning and specialized installation.
The key difference between cable bus and cable tray lies in their function, design, and usage in electrical systems. A cable bus is a system designed specifically for carrying electrical power, using insulated conductors housed within a protective casing. It is used primarily for high-power distribution, often in industrial or commercial settings that require secure, high-current transmission. The cable bus system is modular, meaning it can be customized to suit the specific requirements of the project, including the ability to support longer conductor runs and fewer joints, which makes it more versatile.
On the other hand, a cable tray is a support system used to organize and route cables, including power cables, control cables, and communication cables. Cable trays provide an open framework for cable management, ensuring easy access for installation, repairs, and modifications. They do not carry power themselves but provide a pathway for various types of cables. Cable trays are more flexible than cable bus systems, and they are more commonly used in installations where cables are exposed, requiring frequent maintenance or upgrades.
Cable trays and ducts both serve the purpose of organizing and supporting cables, but they differ significantly in their design, function, and protection level. A cable tray is an open, supportive system designed to hold and route various types of electrical cables. It provides an accessible and flexible solution for cable management, making it easier to install, modify, and maintain cables. Cable trays come in different types, including ladder trays, wire mesh trays, and solid bottom trays, and they allow air circulation around the cables, reducing the risk of overheating.
In contrast, a duct (often referred to as a cable duct or conduit) is typically a sealed, enclosed system that provides more protection to the cables it houses. Ducts are often used in environments where cables need to be shielded from external factors such as moisture, dust, or physical damage. Unlike cable trays, ducts offer a higher level of protection but may be less flexible in terms of accessibility and future modifications.
While cable trays are ideal for environments where cables need to be accessible and flexible, cable ducts are preferred when there is a need for additional protection against environmental hazards. In essence, cable trays offer flexibility and ease of access, while ducts offer protection and security.
The decision to use a busbar instead of a cable often comes down to performance, safety, and efficiency in high-power electrical distribution systems. A busbar is a metal bar (typically made of copper or aluminum) that conducts electricity within a distribution system. Unlike cables, which are typically insulated and flexible, busbars are rigid and more compact. There are several key reasons why busbars are often preferred over cables in certain applications:
Higher Current Carrying Capacity: Busbars are designed to handle much higher currents compared to standard cables. This makes them ideal for power distribution systems in industrial and commercial environments where high electricity demands exist.
Space Efficiency: Since busbars are rigid and compact, they occupy less space than equivalent cable systems. This is particularly beneficial in confined spaces, such as substations or data centers, where space is limited.
Safety: Busbars are typically enclosed in protective casings, which offer better protection against environmental factors (like dust and moisture) and reduce the risk of electrical faults. Unlike cables, busbars can be safer to install and maintain in high-voltage systems.
Lower Maintenance Costs: Busbars are more durable and require less maintenance compared to cables, especially in environments with high electrical loads. The sealed nature of busbars reduces the likelihood of wear and tear, making them a cost-effective choice in the long run.
Higher Efficiency: Due to their low resistance and better heat dissipation properties, busbars are more efficient in power transmission. They are particularly useful for applications where minimal power loss is essential, such as in large industrial power systems or data centers.
