FRP Pipe Fire Rating and Fire Resistance Performance

frp pipe fire rating

FRP pipe fire rating is a crucial factor for industries that rely on Fiberglass Reinforced Plastic pipes. Evaluate FRP pipe fire rating and material performance to ensure fire resistance for a minimum of three hours under flow conditions. These pipes are widely used in sectors like chemical processing, oil and gas, and power generation due to their durability and resistance to corrosion. However, understanding the fire rating of FRP pipes is essential for ensuring safety and meeting regulatory standards. The FRP pipe fire rating provides insight into how these materials perform under fire exposure, helping industries assess their suitability for high-risk environments. Proper evaluation of this rating ensures that FRP pipes can be safely implemented in systems where fire resistance is a priority, ensuring compliance and long-term safety.

Simplifying Your Life: Key Functionalities

Simplifying Your Life Key Functionalities FRP Pipe Fire Rating
AttributeDetails
Product NameFRP Pipe
MaterialFiberglass Reinforced Plastic (FRP), Glass Fiber, Resin, Curing Agent
ApplicationCooling tower, industrial use, power plants, petrochemical, construction, water & oil delivery, handrails
Place of OriginHebei, China
Brand NameGangLong Fiberglass
Surface TreatmentSmooth, sandblast, mat, paint, screw thread, or customer request
Processing ServiceMoulding, Welding, Cutting, Punching, Bending, Decoiling
ShapePipes, tubes, rods, poles, customizable
Colorcustomizable
Thickness1mm to 3mm or customizable
Length≤12000mm
Diameter≤4000mm
PerformanceCorrosion resistance, flame retardant, high strength, fire prevention, long lifespan (>50 years)
TechniquePultrusion, filament winding, hand lay-up
StandardsISO9001
Pressure ClassN/A
AdvantagesHigh quality, lightweight, corrosion resistance, professional team, customizable features,fire retardant, halogen-free, eco-friendly
PackagingPallet, steel frame, wood support, plastic film, customizable
Resin TypeOrthophthalic resin
Working Temperature-40℃ to 80℃
WarrantyTwo year

Table of Contents

What is FRP Pipe Fire Rating?

FRP pipe fire rating refers to the assessment of how Fiberglass Reinforced Plastic pipes perform under fire conditions. These pipes are widely utilized in various industries such as chemical processing, oil and gas, and construction due to their strength, corrosion resistance, and lightweight properties. However, understanding their fire rating is critical to ensure they meet safety standards and can be applied effectively in environments prone to fire hazards. The FRP pipe fire rating evaluates the flame spread, smoke production, and heat resistance of these materials, providing essential information for safe usage in fire-sensitive applications.

The Importance of FRP Pipe Fire Rating

Fire safety is a paramount concern in industrial settings, where the use of fireproof fiberglass insulation can significantly reduce the risk of fire and prevent catastrophic damage and loss. FRP pipe fire rating plays a crucial role in assessing the safety and durability of these pipes in such environments. While FRP pipes are known for their resistance to chemicals and corrosion, they are not inherently fireproof. The fire rating provides a standardized measure of how the material reacts to fire, including whether it ignites easily, how quickly flames spread, and how much smoke it produces. Understanding the FRP pipe fire rating allows engineers and safety professionals to make informed decisions about the appropriate use of these materials in high-risk environments. It ensures that the installation of FRP pipes complies with local regulations and safety codes.

The Key of FRP Pipe Fire Rating

FRP pipe fire rating refers to the assessment of how Fiberglass Reinforced Plastic (FRP) pipes behave when exposed to fire conditions. FRP pipes are widely used in various industries, such as construction, chemical processing, oil and gas, and transportation. These pipes are valued for their corrosion resistance, lightweight structure, and durability. However, one critical aspect that cannot be overlooked is the fire rating of these pipes. FRP pipe fire rating is essential for determining their suitability for specific industrial applications, particularly those with fire risks, and must be considered alongside FRP pipe temperature limits. The fire rating evaluates several factors, including flame spread, smoke development, and heat resistance, to ensure safety and compliance with regulatory standards.

Testing Methods for FRP Pipe Fire Rating

Several standardized testing methods are used to determine the fire rating of FRP pipes:

  • ASTM E84 Test: This test measures the surface burning characteristics of materials, evaluating flame spread and smoke development index. It provides essential information about the fire behavior of FRP pipes.
  • UL 94 Flammability Test: This test measures the material’s ability to extinguish after ignition. It helps assess how quickly FRP pipes can self-extinguish once the external heat source is removed.
  • Thermogravimetric Analysis (TGA): TGA assesses the thermal degradation of FRP materials under high temperatures, providing insights into their heat resistance and stability during combustion.

FRP Pipe Fire Rating: Combustion, Flame Spread, and Smoke Generation

FRP pipes offer excellent resistance to corrosion and durability. However, when exposed to fire, the materials used in their construction present certain fire-related challenges, especially concerning combustion, flame spread, and smoke generation.

Combustion and Flame Spread in FRP Pipes

  • Fiberglass Reinforcements: The fiberglass reinforcements used in FRP pipes do not burn, contributing to the pipe’s stability during a fire.
  • Thermoset Resins: The resins used as the matrix for FRP pipes, such as polyester, epoxy, and vinyl ester, are combustible. While the fiberglass reinforcement does not burn, these resins can support combustion.
  • Fire Retardant Resins: These resins contain halogens or bromine, which help slow the combustion process and can suppress the flame during a fire. However, they still burn when exposed to an external flame or heat source, though at a slower rate.

Smoke Generation in FRP Materials

  • Smoke Density: When FRP materials burn, they generate large amounts of dense, black smoke due to the carbon chains in the resins. This is a significant factor to consider when evaluating the fire safety of FRP pipes.
  • Fire Retardant vs. Non-Fire Retardant Resins: There is no major difference in the density of smoke produced by fire retardant and non-fire retardant resins. However, fire retardant resins may generate less smoke when the fire is not fueled by an external source, though the overall smoke production remains considerable.

Impact of Smoke in Various Facilities

  • Facilities with Low Occupancy: In wide-open spaces or facilities with low occupancy (such as chemical plants or refineries), smoke is often a secondary concern compared to the fire itself. These facilities are more focused on controlling the fire and minimizing structural damage.
  • Facilities with High Sensitivity to Smoke: In environments like electronics plants, the smoke produced by burning FRP pipes can cause more significant damage than the fire itself. The smoke can damage sensitive equipment and severely impact air quality, making it a critical safety concern.

Smoke Generation Test Results

Manufacturer Responses: Major resin manufacturers have confirmed that there are no polyester or vinyl ester thermoset resin systems that produce smoke generation values under 350. This highlights the importance of evaluating both flame spread and smoke generation when specifying FRP pipes for fire-prone environments.

ASTM E-84 Test: According to ASTM E-84 test results, common resins used in FRP pipes (polyesters, vinyl esters, and epoxies) often produce smoke generation values exceeding 750. This demonstrates the significant amount of smoke that can be generated when these materials are exposed to fire.

Applications and Limitations

FRP pipes have applications in fire-prone environments, including fire main systems, distribution terminals, and sprinkler systems. However, certain limitations exist due to the significant smoke generated by burning FRP materials. In buildings with sensitive equipment or high occupancy, the smoke can cause more damage than the fire itself. For such applications, fire retardant coatings, such as PPG Fire-Retardant Latex 42-7 Paint, can be applied to FRP pipes to improve fire resistance. These intumescent coatings form a protective shield when exposed to heat, reducing the rate at which fire affects the pipe.

FRP Pipe Fire Rating Standard

In addition to flame spread and smoke production, FRP pipe fire rating tests also assess the material’s ability to withstand heat. Thermogravimetric analysis (TGA) is often used to study the thermal degradation of FRP materials under high temperatures. By combining these testing methods, manufacturers can determine how long FRP pipes can resist fire before significant structural failure occurs, offering valuable information for fire safety planning.

FRP (Fiber Reinforced Plastic) pipes are increasingly used in various industrial sectors due to their resistance to corrosion, lightweight structure, and long service life. However, one of the critical considerations for these pipes, especially in safety-sensitive environments, is their fire rating. Fire rating standards for FRP pipes ensure they meet certain requirements for fire resistance, minimizing hazards in case of a fire. Below is a detailed description of the main fire rating standards relevant to FRP pipes:

ASTM E84 (Standard Test Method for Surface Burning Characteristics of Building Materials)

  • Purpose: This standard, also known as the “Steiner Tunnel Test,” measures the flame spread and smoke density developed when materials are exposed to fire. It is used to evaluate the surface burning characteristics of materials such as FRP pipes.
  • Classification: The test results in two key ratings:
    • Flame Spread Index (FSI): This measures the material’s ability to resist flame spread. A lower index indicates better resistance.
    • Smoke Developed Index (SDI): This measures the amount of smoke produced by the material when it burns. Lower smoke levels are preferred in fire-sensitive environments.
  • Typical Requirements for FRP Pipes: For most FRP pipes used in industrial settings, an FSI of 25 or less and an SDI of 450 or less are generally required.

ISO 14692-3 (Petroleum and Natural Gas Industries – Glass-Reinforced Plastics [GRP] Piping)

  • Purpose: This standard is specifically designed for glass-reinforced plastic (GRP) pipes used in oil and gas applications. Part 3 of this standard addresses fire safety requirements.
  • Testing Requirements: ISO 14692-3 requires a detailed fire test to ensure that GRP piping systems can withstand certain temperatures for a specific duration without catastrophic failure, which is crucial for preventing oil and gas fires from spreading.
  • Fire Rating Classifications: The pipes may be classified according to the duration they can withstand exposure, typically in terms like “Class 1” (minimum fire resistance), with higher classifications indicating greater resistance.

UL 94 (Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances)

  • Purpose: UL 94 is a standard that tests the flammability of plastic materials, including FRP, used in various devices and appliances. It assesses a material’s reaction to flame exposure and the speed of flame propagation.
  • Testing Procedure: The materials are classified based on how they respond to flame exposure, such as:
    • V-0: Self-extinguishes within 10 seconds after two flame applications.
    • V-1: Self-extinguishes within 30 seconds.
    • V-2: Self-extinguishes within 30 seconds but may allow drips of burning material.
  • Application for FRP Pipes: For FRP pipes, achieving a V-0 rating is generally preferred, as this indicates a high level of fire resistance.

EN 13501-1 (Fire Classification of Construction Products and Building Elements)

  • Purpose: This European standard classifies the reaction of construction products, including FRP pipes, to fire exposure. It is widely used in Europe and offers a more comprehensive classification system.
  • Classification Scheme: EN 13501-1 provides a letter-based rating:
    • A1, A2: Non-combustible materials.
    • B, C, D: Materials with increasing levels of combustibility, where B represents limited combustibility.
    • E, F: Highly combustible materials.
  • Smoke Production and Flaming Droplets: The classification also considers smoke production (s1, s2, s3) and flaming droplets (d0, d1, d2), which are especially important in public or enclosed spaces.

NFPA 130 (Standard for Fixed Guideway Transit and Passenger Rail Systems)

  • Purpose: The NFPA 130 standard is specific to transit systems but provides guidelines for materials used in enclosed spaces where smoke and toxic gas release are concerns, such as subways or train tunnels.
  • Fire Resistance and Smoke Toxicity Requirements: This standard specifies requirements for flame spread, smoke generation, and toxicity to protect occupants. FRP pipes in these applications may need additional testing or additives to enhance fire and smoke resistance.

BS 476-6 and BS 476-7 (Fire Tests on Building Materials and Structures)

  • Purpose: These British standards address two key aspects:
    • BS 476-6: Measures the fire propagation of materials.
    • BS 476-7: Measures the spread of flame across the surface of the material.
  • Classification for FRP Pipes: Results from these tests are used to classify materials into categories based on fire spread resistance, with Class 1 being the most resistant.

When selecting FRP pipes for fire-prone environments, adherence to these fire rating standards is essential to ensure both safety and compliance with regulatory requirements. This includes testing for flame spread, smoke development, and potential toxic gas release. Additionally, specific classifications, such as ASTM E84 Class A, UL 94 V-0, or EN 13501-1 B-s1-d0, may be mandated depending on the application and jurisdiction.

FRP Pipe Fire Rating Standards

FRP Pipe Fire Rating Structure

The fire rating structure for FRP (Fiber Reinforced Plastic) pipes is designed to evaluate and classify their performance in fire situations, ensuring they meet safety and compliance standards. This structure focuses on several key factors, including FRP pipe fire rating, flame spread, smoke production, heat resistance, and, in some cases, toxicity. The following elements comprise the typical fire rating structure for FRP pipes:

Flame Spread Rating

  • Purpose: Measures how quickly flames spread across the surface of the pipe.
  • Test Standards: ASTM E84, EN 13501-1, and BS 476-7 are commonly used to evaluate flame spread.
  • Classification: Ratings are provided on a numerical or class scale. For instance, in ASTM E84, a lower Flame Spread Index (FSI) is preferred, with a value of 25 or less indicating higher resistance.
  • Application: Pipes with lower flame spread ratings are critical in enclosed spaces or high-traffic areas, as they help to contain fire spread.

Smoke Developed Index (SDI)

  • Purpose: Evaluates the amount of smoke generated by the material when exposed to fire, which is vital for visibility and reducing smoke inhalation hazards.
  • Test Standards: Standards such as ASTM E84 and EN 13501-1 are used for smoke development assessment.
  • Classification: Smoke Developed Index is expressed numerically. In ASTM E84, an SDI of 450 or less is generally acceptable for many industrial applications.
  • Application: Lower smoke-producing pipes are especially required in facilities with high occupancy or poor ventilation, such as subways or tunnels.

Heat Resistance and Duration

  • Purpose: Measures how long the FRP pipe can withstand high temperatures without significant loss of integrity.
  • Test Standards: ISO 14692-3, UL 94, and NFPA 130 are common standards that determine how long a pipe can withstand exposure.
  • Classification: Often specified in terms of time (minutes or hours) that a pipe can withstand fire or high temperatures. For instance, ISO 14692-3 provides classifications based on resistance durations such as 30, 60, or 120 minutes.
  • Application: In industries like oil and gas, high heat resistance is critical to prevent system failure or the release of hazardous materials during a fire.

Combustibility and Ignition Resistance

  • Purpose: Assesses whether the material is likely to catch fire and how easily it ignites.
  • Test Standards: UL 94 and EN 13501-1 are commonly used, providing categories based on ease of ignition and self-extinguishing properties.
  • Classification: For example, UL 94 has classifications like V-0 (self-extinguishes within 10 seconds) and V-1 (self-extinguishes within 30 seconds).
  • Application: Pipes rated V-0 are typically required in high-risk areas where ignition resistance is critical.

Toxicity and Emissions

  • Purpose: Assesses the toxicity of smoke and gases produced when the pipe material burns, which is crucial for safety in confined spaces.
  • Test Standards: Standards like NFPA 130 evaluate smoke toxicity to ensure that pipes used in closed environments do not emit harmful gases.
  • Classification: Materials may be classified based on their emissions profile, with low-toxicity materials preferred in occupied spaces.
  • Application: In transit systems or chemical processing plants, where inhaling toxic fumes poses significant hazards, low-emission materials are required.

Fire Propagation and Structural Integrity

  • Purpose: Tests the structural integrity of the pipe under fire conditions, ensuring that it can withstand fire without collapsing or failing.
  • Test Standards: BS 476-6 and ISO 14692-3 assess structural integrity, focusing on maintaining performance under fire exposure.
  • Classification: Structural ratings can be provided as Class 1, 2, or 3, with Class 1 indicating the highest fire resistance.
  • Application: Structural integrity is especially critical for pipes carrying hazardous or pressurized materials, as failure could exacerbate fire risks.
FRP Pipe Fire Rating Structure

How to Determine FRP Pipe Fire Rating

Determining the FRP pipe fire rating involves a series of tests and evaluations based on industry standards, each addressing a specific aspect of fire resistance, such as flame spread, smoke development, and structural integrity. Below is a step-by-step guide on how to determine the fire rating of FRP pipes:

Select Relevant Standards Based on Application

  • Identify the Industry Requirements: Different industries have varying fire safety standards for FRP pipes. For example, oil and gas might prioritize ISO 14692-3, while building construction might rely on ASTM E84 or EN 13501-1.
  • Choose Appropriate Standards: Commonly used standards include:
    • ASTM E84 for surface burning characteristics.
    • ISO 14692-3 for petroleum and gas applications.
    • UL 94 for flammability classifications.
    • EN 13501-1 for general building materials fire classification.
    • NFPA 130 for transit and rail applications.
  • Determine Specific Requirements: Review the requirements within the selected standards, such as flame spread limits, smoke development thresholds, and allowable toxic emissions.

Conduct Flame Spread Testing

  • Use ASTM E84 (Steiner Tunnel Test): This test is commonly used to determine the Flame Spread Index (FSI) and Smoke Developed Index (SDI) for FRP pipes.
  • Testing Process:
    • Expose the FRP pipe sample to a controlled flame source in a tunnel test setup.
    • Measure the flame spread and smoke produced over a defined period.
    • Determine the FSI and SDI ratings, aiming for low scores (typically, FSI of 25 or less and SDI of 450 or less are preferred).
  • Record Classification: Based on the flame spread and smoke levels, classify the pipe according to fire spread categories defined in the relevant standard.

Evaluate Heat Resistance and Fire Duration

  • Use ISO 14692-3 for High-Temperature Endurance: This test, particularly important for oil and gas, exposes FRP pipes to high temperatures to assess how long they retain structural integrity under fire conditions.
  • Testing Process:
    • Expose the FRP pipe to a specified temperature (e.g., 650°C or higher) for durations that simulate a real fire scenario.
    • Measure time until failure, deformation, or melting of the pipe.
    • Classify based on heat endurance, with higher ratings indicating longer resistance.
  • Rating Output: Often expressed in terms of minutes (e.g., “Class 120” for 120 minutes of resistance).

Assess Combustibility and Ignition Resistance (UL 94)

  • Use UL 94 (Vertical and Horizontal Flame Test): This test measures the material’s ability to ignite, sustain burning, and self-extinguish.
  • Testing Process:
    • Expose small samples of FRP material to flame for a specific period.
    • Record how long the material continues to burn after the flame source is removed.
    • Determine whether the material meets classifications such as V-0 (extinguishes within 10 seconds) or V-1 (extinguishes within 30 seconds).
  • Application: A V-0 rating is generally required for FRP pipes used in high-risk areas.

Measure Smoke Toxicity and Emission Levels (NFPA 130)

  • Use NFPA 130 (for Transit Systems): This standard assesses the toxicity of smoke and gases produced when FRP materials burn.
  • Testing Process:
    • Burn the FRP pipe sample in a controlled environment and analyze the emitted gases for toxic components.
    • Measure concentrations of gases such as CO, CO₂, and other toxic compounds.
    • Compare levels against maximum allowable thresholds to determine compliance.
  • Application: Low-toxicity ratings are essential for FRP pipes in enclosed or occupied areas.

Conduct Structural Integrity and Fire Propagation Testing (BS 476-6 & BS 476-7)

  • Use BS 476-6 and BS 476-7: These standards assess structural stability under fire conditions and fire propagation potential.
  • Testing Process:
    • Test the FRP pipe’s resistance to deformation or collapse when exposed to fire.
    • Measure the spread of fire and the material’s ability to limit propagation.
    • Classify according to resistance levels, with Class 1 materials showing the highest resistance.
  • Application: For FRP pipes in critical applications (e.g., carrying hazardous materials), high structural integrity under fire exposure is essential.

Compile and Analyze Test Results

  • Review Ratings Across Standards: Summarize flame spread, smoke development, heat resistance, ignition resistance, toxicity, and structural integrity ratings.
  • Determine Fire Rating Classification: Assign a fire rating based on the cumulative performance across standards. For example:
    • Class A (ASTM E84) for pipes with high flame and smoke resistance.
    • B-s1-d0 (EN 13501-1) for low flame spread, minimal smoke, and no flaming droplets.
  • Label and Document Compliance: Document all test results and labels, ensuring the pipe meets the required fire rating for its intended application.

Determining the fire rating of FRP pipes involves selecting relevant standards, conducting tests for flame spread, smoke development, heat resistance, and toxicity, and then analyzing the results to classify the pipe according to industry-specific fire rating structures. Accurate testing and documentation ensure that FRP pipes are safe and compliant for high-risk applications.

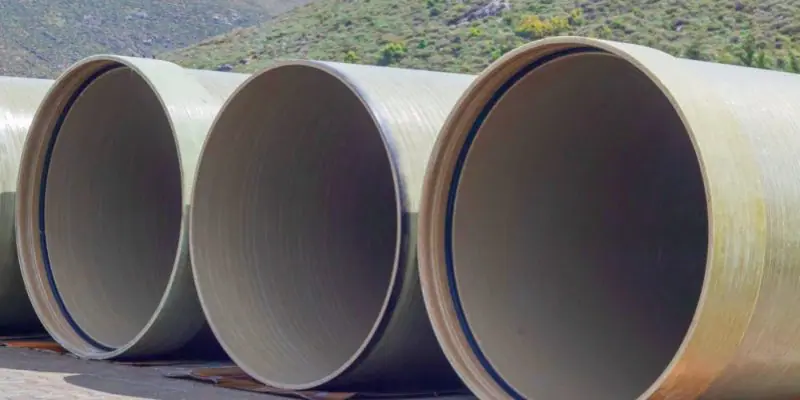

How to Determine FRP Pipe Fire Rating

How to Evaluate the Fire Resistance Period of FRP Pipes

Evaluating the fire resistance period of FRP pipes is essential to understand how long they can perform under fire conditions without structural failure. The fire resistance period refers to the amount of time an FRP pipe can withstand heat and fire exposure before it begins to degrade. This period is determined through rigorous testing and simulation, providing a realistic expectation of how the material will behave in real-world fire scenarios.

Fire resistance testing for FRP pipes involves subjecting the material to high temperatures in controlled environments. The goal is to determine how long the pipe maintains its structural integrity and functionality under extreme heat. For example, pipes used in chemical processing plants may be required to maintain functionality for a minimum of one hour in fire conditions. Testing ensures that FRP pipes meet the necessary fire resistance period for their intended application.

The Key of FRP Pipe Fire Rating and Regulatory Compliance

Compliance with fire safety regulations is mandatory in most industries, especially those that deal with hazardous materials or operate in high-risk environments. FRP pipe fire rating plays a key role in meeting these regulatory requirements. In many regions, local and international standards dictate the fire rating that materials, including FRP pipes, must meet before being approved for use.

Fire safety regulations often require that materials used in construction or industrial settings are tested and certified to specific standards. In the case of FRP pipes, these standards ensure that the materials will not contribute to the rapid spread of fire and that they produce minimal smoke, reducing the risk to both human life and property. Manufacturers like GangLong Fiberglass ensure that their products meet or exceed fire rating standards to comply with these regulations.

Case Studies: Fire Resistance in FRP Pipes

There have been several instances where the fire rating of FRP (Fiber Reinforced Plastic) pipes played a crucial role in mitigating damage in industrial settings. The high fire resistance of these pipes helps limit the spread of fire, ensuring the safety of personnel and equipment.

In particular, PPR FRP Pipe enhances this safety factor by combining polypropylene random (PPR) with FRP, offering even greater fire resistance and durability. This makes PPR FRP Pipe an excellent choice for industries that prioritize both safety and performance in fire-prone environments. For example, in one case study, a chemical processing plant experienced a fire that spread rapidly through one part of the facility. However, the FRP pipes installed in the plant had been selected based on their high fire rating, and they were able to resist the fire long enough to allow for an emergency shutdown of the plant’s systems. The fire resistance period of the pipes was crucial in preventing further damage and ensuring that critical systems remained operational during the fire.

In another case, FRP pipes were installed in an offshore oil platform where fire risks are elevated due to the presence of flammable materials. The FRP pipe class had a Class A fire rating, meaning they were able to withstand prolonged exposure to fire without failure. This prevented the fire from spreading to other parts of the platform and allowed the crew enough time to contain the fire.

Fire Radiative Power and FRP Pipe Durability

Fire radiative power (FRP) is a measure of the energy released by a fire, and it has a direct impact on the durability of FRP pipes in fire conditions. The higher the fire radiative power, the more stress the material experiences during a fire. This can affect the FRP pipe fire rating, as materials that can withstand higher levels of radiative power are rated more highly. In industries where fires can produce significant amounts of heat, such as power generation or chemical processing, selecting FRP pipes with a high fire rating is essential to ensure long-term durability and safety.

How about FRP Pipe Fire Rating?

FRP pipe fire rating refers to the assessment and classification of fiberglass-reinforced plastic (FRP) piping systems based on their fire resistance properties. This rating is crucial for determining how well these pipes, such as fire retardant FRP options, can withstand exposure to fire and maintain structural integrity during a fire event. The fire rating of an FRP pipe is essential in ensuring the safety of installations in various industries, including chemical processing, oil and gas, and construction. These industries rely on FRP pipes because of their corrosion resistance and lightweight properties, but the fire rating provides insights into their performance under fire conditions.

One of the significant factors influencing the frp pipe fire rating is the type of resin used in the pipe’s construction. Resins with better fire resistance properties can significantly enhance the overall fire rating of FRP pipes. Furthermore, understanding the factors that affect the fire rating, including material composition, design, and application, is crucial for selecting the right FRP pipes for environments prone to fire hazards.

Factors Affecting FRP Pipe Fire Rating

When evaluating the frp pipe fire rating, several factors need to be considered to ensure that the pipes meet the necessary safety standards.

Resin Type

The resin used in the construction of FRP pipes plays a significant role in their fire resistance. Certain resins, such as those with halogenated additives, are more resistant to fire than others. These resins help reduce the rate at which flames can spread over the surface of the pipe. Choosing a fire-resistant resin can improve the frp pipe fire rating, making it a critical aspect of fire protection in piping systems.

Pipe Thickness

The thickness of the FRP pipe walls also impacts the frp pipe fire rating. Thicker walls provide better insulation against heat and flames, slowing down the rate at which the pipe might fail under fire conditions. In applications where fire hazards are more likely, opting for thicker-walled FRP pipes can be an essential step in enhancing fire safety.

Fire Retardant Additives

In addition to resin types, the incorporation of fire retardant additives into the FRP pipe material can significantly improve its fire resistance. These additives act by slowing down the combustion process, limiting the amount of heat and flame produced during a fire event. The use of these additives is common in industries where higher fire ratings are required for compliance with safety regulations.

The key factors influencing frp pipe life expectancy

Installation Practices for Enhanced Fire Rating

The installation of FRP pipes directly affects their fire resistance. Proper installation practices improve the FRP pipe fire rating, ensuring both infrastructure and personnel are protected during a fire. By carefully considering factors like spacing, coating, insulation, and mounting, engineers can design systems that remain functional and safe under fire exposure. Following these best practices helps meet fire safety standards and extends the lifespan of FRP pipes in fire-prone environments, ensuring overall fire protection and resilience.

Correct Spacing

Proper spacing between FRP pipes is essential for fire safety. In fire-prone areas, placing pipes too close together increases the risk of heat transfer and flame propagation. Maintaining the correct distance between FRP pipes and other components helps prevent fire from spreading throughout the system. Adequate spacing also ensures better ventilation and cooling, which can reduce the intensity of heat exposure, thereby minimizing potential damage to the pipes and surrounding structures during a fire, improving overall safety.

Protective Coatings

Applying fireproof coatings to FRP pipes adds an extra layer of protection against flames and high temperatures. These coatings act as an insulating barrier, slowing the rate at which the pipes heat up during a fire. This helps preserve the structural integrity of the FRP system and extends its functional life under extreme conditions. Fireproof coatings significantly enhance the fire rating of FRP pipes, ensuring they maintain their performance for longer periods during a fire, protecting both the system and surrounding areas.

Fireproof Insulation

Fireproof insulation, such as mineral wool or ceramic fiber, can be wrapped around FRP pipes to provide additional protection from heat. This insulation helps reduce the amount of heat transferred to the pipes, lowering the risk of failure during a fire. It also protects nearby structures and equipment from fire damage, giving additional time for firefighting efforts. Fireproof insulation increases the time it takes for pipes to reach critical temperatures, enhancing fire safety and the effectiveness of the piping system in fire-sensitive environments.

Proper Support and Mounting

Proper support and mounting of FRP pipes ensure their stability during a fire. Using fire-resistant brackets and clamps keeps the pipes securely in place, preventing displacement or damage during heat exposure. This approach helps preserve the system’s integrity and reduces the risk of failure that could lead to fire spread. Ensuring that pipes are properly supported also minimizes the risk of deformation, cracking, or breaking, ensuring the system continues to function and protect critical infrastructure in fire-prone environments.

Proper Ventilation and Clearance

Adequate ventilation and clearance around FRP pipes are critical for fire safety. Proper ventilation helps dissipate heat, preventing pipes from overheating during a fire. Clearance between pipes also allows for better application of fireproof coatings and insulation, which further enhance fire resistance. Ensuring proper airflow and spacing around the system reduces the likelihood of fire spreading and allows for easier inspection and maintenance. These measures improve the fire resistance of the entire system, ensuring it remains functional and safe during fire exposure.

Monitoring and Regular Inspections

Regular inspections are crucial for maintaining the fire resistance of FRP pipes over time. Inspections help identify signs of damage to fireproof coatings, insulation, or pipe integrity, ensuring the system continues to meet fire safety standards. Monitoring for issues like cracking, wear, or corrosion helps address problems before they compromise the system’s performance. Regular inspections allow for timely repairs or replacements, ensuring that the FRP pipes remain safe and functional, even after long-term exposure to fire hazards and harsh environments.

Applications of FRP Pipes in Fire-Prone Settings

FRP pipes are used in a variety of settings where fire hazards are a concern. The FRP pipe fire rating and FRP Pipe Stiffness are critical factors in determining whether the pipes are suitable for these applications.

Chemical Processing Plants

In chemical processing plants, where flammable substances are commonly handled, FRP pipes with high fire ratings are crucial for preventing accidents. The right fire rating ensures that, even in the event of a fire, the piping system remains functional for a sufficient amount of time. This provides a critical window for fire suppression efforts and prevents further damage to equipment and the surrounding environment, ensuring worker safety and maintaining operations during emergency situations.

Offshore Oil and Gas Platforms

Offshore oil and gas platforms require FRP pipes with high fire resistance due to the combination of highly flammable materials and the remote location of these platforms. Fire safety is a top priority in these settings, where intense heat from a fire can quickly threaten the integrity of the system. FRP pipes with a high fire rating can withstand extreme temperatures, ensuring the piping system remains intact during a fire and preventing the spread of damage across the platform.

Industrial Manufacturing Plants

Industrial manufacturing plants often operate with a range of materials, some of which can be flammable. FRP pipes in these settings are used to transport chemicals, gases, or liquids that may pose fire hazards. With high fire ratings, these pipes help mitigate the risk of fire spread, ensuring that the plant can continue operations during a fire emergency. A high fire rating in FRP pipes ensures that they can withstand the fire long enough to prevent catastrophic failure, allowing for safe evacuation and firefighting efforts.

Wastewater Treatment Plants

In wastewater treatment plants, the potential for hazardous materials to catch fire requires the use of highly fire-resistant materials for piping systems. FRP pipes with high fire ratings help reduce the risk of fire-related incidents, especially in areas where flammable gases or chemicals may be present. These pipes ensure the safe transport of treated and untreated water while maintaining their structural integrity under extreme fire conditions, allowing for continued operations and minimizing downtime in case of fire-related emergencies.

Key to ensure successful frp pipe procurement process

Importance of FRP Pipe Fire Rating in Industrial Applications

In industrial settings, fire safety is a top priority. FRP pipe fire rating is crucial for assessing how the material will react under fire conditions. While FRP pipes are known for their ability to resist chemical corrosion and handle harsh environments, their performance in fire-prone areas must be carefully evaluated. Understanding the fire rating of these pipes helps in selecting the appropriate type of FRP for environments that may experience high heat or fire exposure.

The FRP pipe fire rating is typically classified into different categories based on performance, such as Class A, B, or C ratings. These ratings indicate the material’s ability to limit flame spread and minimize smoke production. For example, a Class A rating is often required for applications in oil refineries, power plants, or offshore platforms where fire hazards are more prevalent. By understanding the fire rating, industries can make informed decisions about using FRP pipes safely in their operations.

Testing Methods for FRP Pipe Fire Rating

Various standardized testing methods are used to determine the FRP pipe fire rating. The most common tests include ASTM E84 and UL 94. ASTM E84 measures the surface burning characteristics of materials, specifically flame spread and smoke development indices. This test helps classify materials into different fire rating categories based on their performance during fire exposure. On the other hand, UL 94 evaluates the flammability of materials and their ability to self-extinguish once ignited.

These tests play an essential role in determining the safety of FRP pipes in industrial applications. The FRP pipe fire rating is based on the results of these tests, which provide critical insights into the material’s performance during a fire. For industries dealing with high fire risks, selecting pipes that have been rigorously tested and rated for their fire resistance is crucial.

Evaluating FRP Fire Resistance Period

FRP pipe fire rating also involves assessing the fire resistance period. This refers to the amount of time an FRP pipe can withstand exposure to fire before it starts to degrade or lose its structural integrity. The fire resistance period is vital in scenarios where a fire may occur, allowing engineers to predict how long the pipes will remain functional under extreme heat.

Testing methods for the fire resistance period usually involve subjecting the pipes to controlled fire conditions, simulating real-world fire exposure. The pipes are monitored to see how long they can maintain their structural strength and functional properties before failure. This period is crucial for industries such as oil and gas, where the integrity of piping systems must be maintained for an extended period during an emergency. Proper evaluation of the fire resistance period helps in the selection of the right materials for fire-prone environments.

FRP Pipe Fire Rating Standards

FRP pipe fire rating standards ensure that materials meet the necessary safety requirements. Several organizations, such as ASTM, UL, and ISO, have developed standards that define the acceptable levels of fire performance for FRP pipes. These standards are used by manufacturers like GangLong Fiberglass to ensure that their products are safe for use in various industries.

The classification of FRP pipe fire rating typically involves categorizing the material based on its performance in tests such as ASTM E84. For example, Class A materials must demonstrate low flame spread and minimal smoke production. These standards provide a clear understanding of how FRP pipes will behave in a fire, allowing engineers and safety experts to make informed decisions about where and how to use them.

Selecting the Right FRP Pipe Spacers for Your System

FAQs about Frp Pipe Fire Rating

Does FRP have a fire rating?

Yes, FRP (Fiberglass Reinforced Plastic) does have a fire rating. The specific rating depends on the type of FRP and the additives used in its composition. FRP materials are often treated with fire-retardant resins to enhance their fire resistance. These materials can achieve various fire ratings, typically based on industry standards like ASTM E84, which measures flame spread and smoke development. It’s important to note that FRP’s fire rating can vary depending on the manufacturer and the intended application, such as for walls, ceilings, or industrial settings. Always check the product’s certification to ensure it meets your specific fire safety requirements.

How flammable is FRP?

FRP can be made either flammable or flame-resistant depending on the resins and additives used during its production. Standard FRP without any fire-retardant additives can be flammable and burn when exposed to high temperatures. However, many FRP products are treated with fire-retardant chemicals to reduce their flammability. In fire-resistant forms, FRP has a much lower flame spread and slower combustion rate, making it safer for use in settings where fire risks are a concern. Always verify the product’s specifications to understand its behavior in a fire.

Is FRP considered non-combustible?

No, FRP is not considered non-combustible. Although some FRP products are fire-resistant, they can still burn under extreme temperatures. FRP typically falls into the category of fire-retardant rather than non-combustible materials. This means that while it may not ignite easily and can slow down the spread of flames, it does not meet the strict criteria for non-combustible materials like concrete or steel. If non-combustibility is a key concern, other materials should be considered.

Does fiberglass have a fire rating?

Yes, fiberglass materials can have a fire rating, which is determined based on industry standards like ASTM or UL. While basic fiberglass is generally non-combustible, the addition of specific resins can influence its fire properties. Fire-rated fiberglass is often tested to meet specific standards, such as flame spread and smoke development ratings. For example, some fiberglass materials achieve Class 1 ratings, making them suitable for industrial settings where fire resistance is necessary. Fiberglass can be manufactured with additives that improve its fire resistance, allowing it to perform well under controlled conditions and achieve the desired fire rating.

What is the fire rating of FRP grating?

The fire rating of Fiber Reinforced Polymer (FRP) grating depends largely on the type of resin used in the manufacturing process. Certain FRP gratings, especially those made with phenolic resin, are designed to meet high fire-resistance standards, such as ASTM E-84 Class 1, which indicates a low flame spread and minimal smoke production. This rating makes phenolic FRP grating suitable for areas requiring high fire performance, including industrial environments and offshore platforms. The fire rating of FRP grating is essential to its safety in applications where fire exposure is a concern, providing controlled resistance.

How fire-resistant is fiberglass?

Fiberglass has a generally good fire-resistance profile, as it does not easily ignite and, instead of burning, tends to melt under extreme heat. However, fiberglass by itself is not entirely fireproof and may lose its structural integrity under prolonged high temperatures. Fire resistance varies depending on the resin composition, with certain fire-retardant additives enhancing its performance. Industrial fiberglass composites can be specifically engineered for higher fire resistance, achieving ratings under standards like ASTM E-84. Fiberglass products with fire-retardant resins are used in many settings to minimize the risk of ignition and improve safety.

What is the fire rating of FRP grating?

FRP grating made with flame-retardant or phenolic resins can achieve Class 1 fire ratings under ASTM E-84, which reflects a low flame spread and reduced smoke development index. This rating is critical for safety in areas where fire resistance is necessary, such as industrial plants, offshore platforms, and tunnels. The ASTM Class 1 rating allows FRP grating to withstand short-term fire exposure while maintaining structural integrity. FRP grating without such a rating may perform differently in a fire, so specifying rated FRP grating is crucial in applications where flame resistance is a priority.

Is fiberglass a fire hazard?

Generally, fiberglass is not considered a significant fire hazard, as it has a high melting point and does not easily ignite. However, under high temperatures, it may melt and produce smoke or fumes, depending on the specific resins used. Basic fiberglass products can be enhanced with fire-resistant additives to increase safety. In environments with potential fire exposure, selecting fiberglass with a certified fire rating is recommended. While fiberglass itself resists flames to some extent, adding resins or other components may change its fire behavior, so fire-resistant options are preferred for critical applications.

What does FRP stand for in fire?

In fire safety and construction contexts, FRP stands for Fiber Reinforced Polymer. FRP materials are composites made from a polymer matrix, often reinforced with fibers like fiberglass, and may include fire-resistant additives to improve performance in elevated temperatures. FRP is commonly chosen for applications where lightweight and durable materials with specific fire properties are needed, such as in construction, transportation, and industrial facilities. When designed with fire-retardant resins, FRP materials can meet specific standards, like ASTM Class 1, which makes them suitable for use in fire-sensitive environments.

GangLong Fiberglass editor Morgan Ellis

As the editor of GangLong Fiberglass, I have years of experience and in-depth research, focusing on cable tray products, fiberglass solutions, and grille systems. I incorporate years of industry insights and practical experience into every content, committed to promoting the progress of the industry. At GangLong Fiberglass, my commitment is reflected in every product, from innovative cable trays to durable fiberglass solutions and sturdy grille systems. As an authoritative voice in the industry, my goal is to provide valuable information to professionals and businesses and promote forward-looking solutions.


    Please prove you are human by selecting the tree.
